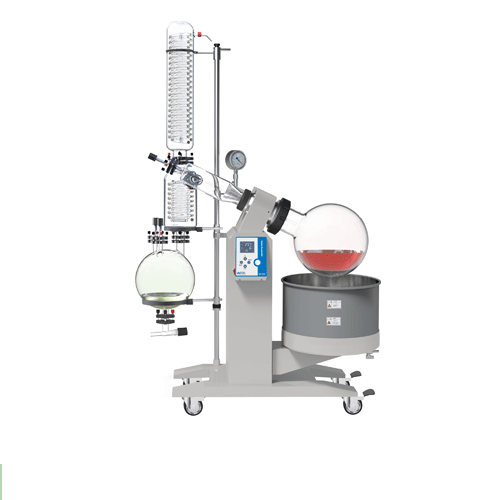

DaiHan DH.WEV01020 Digital Rotary Evaporator (20Lit, 220V, 10~130 rpm)

-Evaporating Flask: 20 Lit, Flange Opening Φ125 mm

-Receiving Flask: 10 Lit

-Condenser: Standing, Main & Auxiliary Cooling and Highly Efficient 3 Circulating Cold Trap

-Temp. Range: 0℃ ~ 99℃

-Rotary Speed: 10~130 rpm

-Evaporating Capability: Water: 5 Lit./h, Alcohol: 11 Lit/h

-Cooling Surface: Main Condenser: 8000 cm2; Auxiliary Condenser: 3500cm2

-Achievable Vacuum: 399.9Pa(below 3mmHg)

-Functional of Lifting Tabl: Electric

-Electric Stroke: 0 ~ 190 mm

-Vacuum Sealing: PTFE and Fluorine Rubber Dual Rotating Seal

-Motor: 180 W, Phase DA Induction Motor

-Heating Boiler: Stainless steel Water Bath

-Display: Digital display

-Power Consumption: 6.3kW

-Dimension (mm):  1250x600xh2100

-Electrical Reqts. 1phase 230V, 50/60Hz
