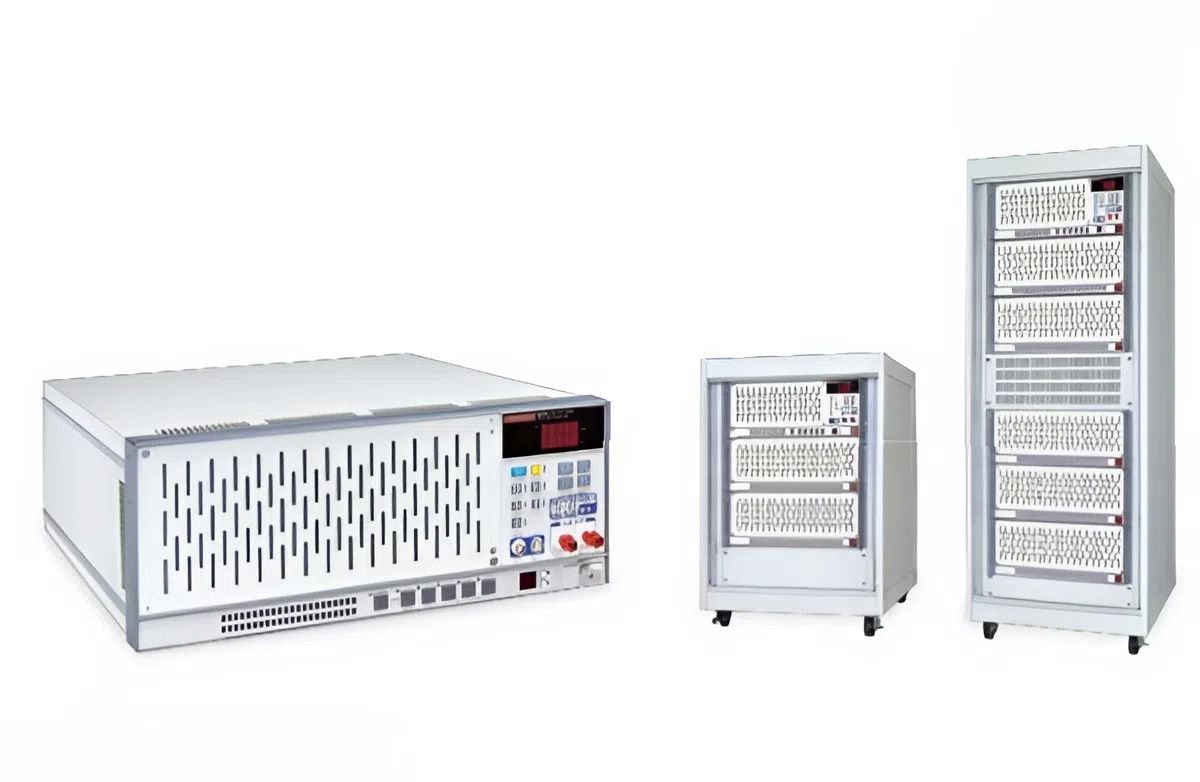

AC/DC electronic load GW INSTEK

AC and DC in modern test and measurement systems from an operational perspective

AC and DC are the two fundamental forms of power supply for all electronic and industrial systems. In the current context, power sources are no longer viewed as simple energy supply points but as part of a chain for evaluating operating states, load tolerance, and device response under different conditions.

Especially in testing, validation, and product development activities, the way power sources are organized directly affects the completeness of test scenarios and the ability to identify technical risks at an early stage.

AC used to recreate grid conditions

AC power sources are commonly used during the phase of evaluating adaptability to real-world grid conditions. Voltage fluctuations, frequency deviations, or voltage drops during large load startup all have a clear impact on equipment operating on alternating current.

Programmable AC power sources allow these states to be recreated in a controlled and repeatable manner. This testing approach supports the evaluation of operational continuity when voltage changes, rather than limiting assessment to nominal conditions.

DC playing a role in controlling circuit behavior

DC power sources appear more frequently within the internal layers of electronic equipment. Control circuits, power boards, and integrated modules are highly sensitive to changes in current and voltage.

Laboratory DC power supplies are used to determine load limits, responses to changes in consumption levels, and the overall stability of the design.

AC and DC viewed as a connected system

Many devices use AC input power while processing energy internally in DC form. Testing each power layer separately only reflects part of operational behavior.

AC reflects the influence of external electrical infrastructure.

DC reveals the internal response of circuits and components.

The combination of programmable AC power sources, DC power supplies, and electronic loads helps recreate a complete energy chain from input to processing core. This approach supports early identification of potential issues before equipment enters actual operation.

Reference at: Electronic AC/DC Load

Current market trends for AC DC power sources

The market is shifting away from selecting power sources based solely on nominal power ratings. Programmability, monitoring capability, and repeatability of test scenarios have become determining factors.

Modern AC DC power sources are used as tools to evaluate device behavior rather than as pure power delivery equipment. This explains why test and measurement systems often integrate multiple components ranging from power sources and electronic loads to specialized measurement instruments.

AC and DC are not separate but complementary within modern test and measurement systems. Each type of power source reflects a different layer of device state. Selecting the appropriate power source and organizing test methods directly affects evaluation quality and product development efficiency.
