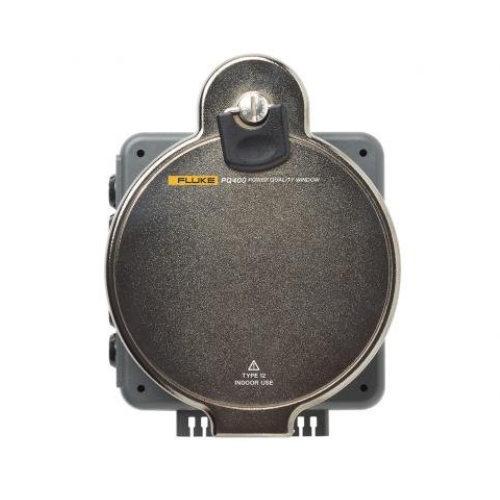

FLUKE PQ400/B Basic Power Quality Window (Enclosure only)

Maximum voltage between any voltage terminal and earth ground: 1000 V

Maximum voltage between any current terminal and earth ground: 30 V

Dimensions: Outside: 148 mm x 187 mm x 23 mm (W x H x D) (148 mm x 370 mm x 19 mm with cover opened)

                     Inside: 140 mm x 158 mm x Di (W x H x D) Di = 58 – thickness of panel door in mm

Weight: 2.1 kg (4.6 lb)

Voltage Input

Number of inputs: 5 (A/L1, B/L2, C/L3, N, and earth/ground)

Wire gauge: Solid/flexible: 0.25 mm2 to 1.5 mm2 (AWG 24 to AWG 16)

Voltage: Max. 1000 V

Fuse: 2 A 1000 V 1.5 A²s, 10 kA IR (A/L1, B/L2, C/L3, N)

Voltage Output

Connectors: 5x 4 mm safety terminals, 3x red for A/L1, B/L2, C/L3, 1x black for N, 1x green for earth/ground

Load current: Max. 1 A rms

Current: Input/output: Connectors 5x 4-pin circular compatible with Fluke 354x FC, 173x, and 174x power and power quality loggers (these loggers can all be power from the measured voltage up to 500V)

Includes:

PQ400 enclosure

Instruction sheet
