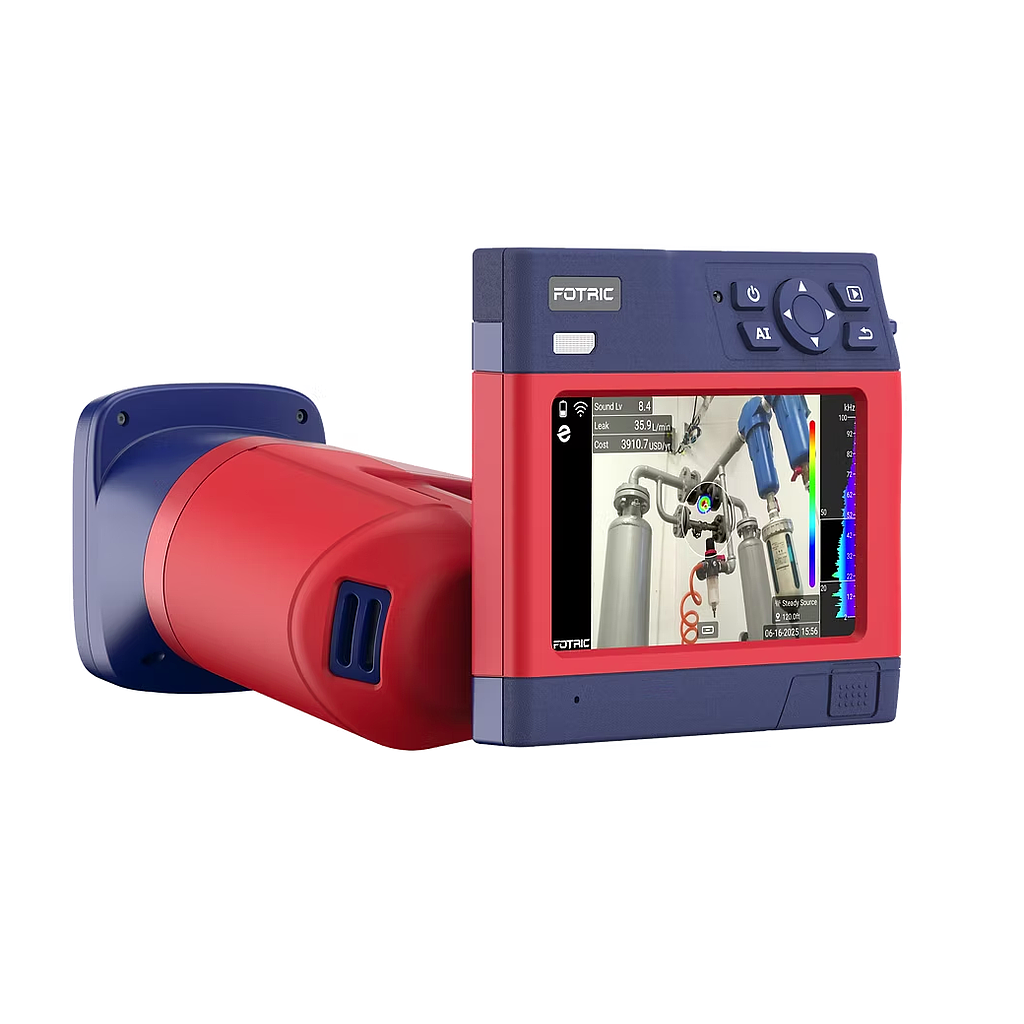

FOTRIC H6 Flex Acoustic Imaging Camera (66° × 52°; 200kHz; 0.3~100m)

NaviPdM Venus: AI Inspection Assistant

Articulate Microphone Array: 180° Rotatable

Acoustic Image Delay (T-FFTD®): Captures instantaneous sound signals, can stay longer in real-time acoustic image

Acoustic Image Focus: Masks surrounding areas, focuses only on the acoustic image of the focused area

On-device Report Generation: Support Word or PDF format

Partial Discharge Diagnosis: surface discharge, floating dischangrge, and corona discharge, as well as their severity

Gray Scale Background: Display digital camera images in grayscale

Microphone channels: 162 MEMS digital microphones

Acoustic Image Field of View (FOV): 66° × 52°

Acoustic Sampling Rate: 200kHz

Acoustic Refresh Rate: 25Hz

Working Distance: 0.3~100m

Detection Mode

Leakage mode: displays the leakage level on the device.

Partial discharge mode: display PRPD chart, suitable for different AC frequencies (50/60Hz).

Image Modes: Single-source mode, multi-source mode, hologram mode

Digital Camera: 13 Megapixels, Industrial-Grade Digital Camera

Storage Card: SD card, hot-swappable, maximum support 1TB

Battery Operating Time: Continuous operation time ≥ 4 hours (Actual usage time depends on environmental and usage conditions)

Supported Languages: English, Traditional Chinese, Spanish, Korean, German, Portuguese, Italian, French, Thai, Japanese

Standard Configuration: Acoustic imaging camera main unit, rechargeable lithium battery * 2, charging dock, power adapter, USB Type-C to USB cable, Micro HDMI to HDMI cable, 128G SD card, SD card reader, accessory bag (wrist strap, 2 wrist strap holders, 2 M4*8 screws, lanyard, hex wrench, SIM eject tool), document bag (packing list, quick start guide), portable soft bag, hard carrying case, outer packaging box
