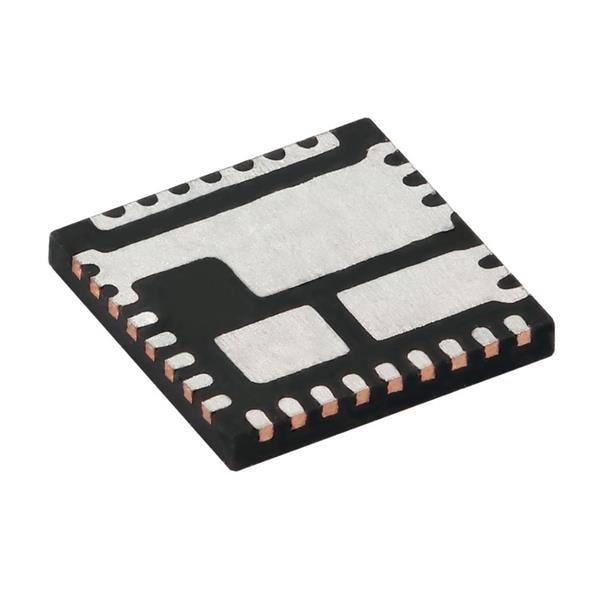

Vishay General Semiconductor SIC645ER-T1-GE3 High-Side, Low-Side Smrt Pwr Stage VRPwr 4.5 to 18V; 5V PWM
Manufacturer: Vishay General Semiconductor Model: SIC645ER-T1-GE3 - Contact
Shutdown: Shutdown
Technology: Si
Unit Weight: 1 g
Configuration: Non-Inverting
Mounting Style: SMD/SMT
Output Current: 60 A
Number of Drivers: 2 Driver
Number of Outputs: 2 Output
Input Voltage - Max: 18 V
Input Voltage - Min: 4.5 V
Supply Voltage - Max: 18 V
Supply Voltage - Min: 4.5 V
Pd - Power Dissipation: 100 W
Operating Supply Current: 15 mA
Maximum Turn-On Delay Time: 8 ns
Maximum Turn-Off Delay Time: 40 ns
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Rds On - Drain-Source Resistance: 760 uOhms, 3.6 mOhms
