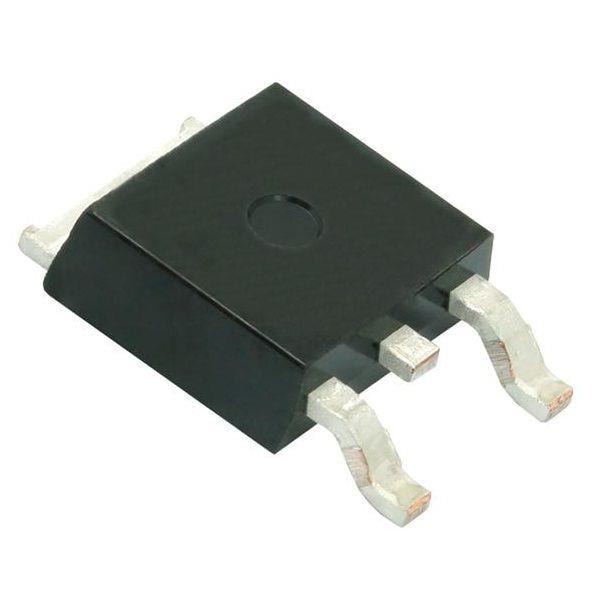

Vishay General Semiconductor SQD19P06-60L_T4GE3 MOSFETs -60V Vds TO-252 AEC-Q101 Qualified

Fall Time: 12 ns

Rise Time: 9 ns

Technology: Si

Unit Weight: 330 mg

Channel Mode: Enhancement

REACH - SVHC: Details

Configuration: Single

Qualification: AEC-Q101

Mounting Style: SMD/SMT

Transistor Type: 1 P-Channel

Qg - Gate Charge: 27 nC

Number of Channels: 1 Channel

Transistor Polarity: P-Channel

Pd - Power Dissipation: 46 W

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Typical Turn-On Delay Time: 7 ns

Typical Turn-Off Delay Time: 25 ns

Id - Continuous Drain Current: 20 A

Maximum Operating Temperature: + 175 C

Minimum Operating Temperature: - 55 C

Rds On - Drain-Source Resistance: 55 mOhms

Vds - Drain-Source Breakdown Voltage: 60 V

Vgs th - Gate-Source Threshold Voltage: 2.5 V
