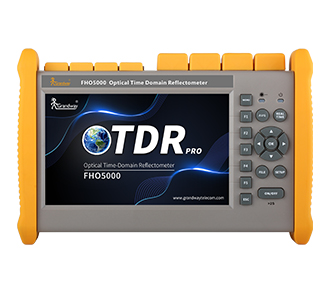

Grandwaytelecom FHO5000-D50 OTDR (1310/1550nm±20nm; 50/48dB; 0.8/3m)

Wavelength: 1310/1550nm±20nm

Dynamic Range: 50/48dB

Dead-zone: 0.8/3m

Test Parameter

Pulse Width: 3ns, 5ns, 10ns, 30ns, 50ns, 100ns, 275ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs

Testing Distance: 500m, 2km, 5km, 10km, 20km, 33km, 40km, 80km, 120km, 160km, 265kmSampling Resolution Minimum 5cm

Sampling Point: Maximum 256,000 points

Linearity: ≤0.05dB/dB

scale Indication: X axis: 4m~70m/div, Y axis: Minimum 0.09dB/div

Distance Resolution: 0.01m

Distance Accuracy: ±(0.75m+measuring distance×3×10^-5+sampling resolution) (excluding IORuncertainty)

Reflectance Accuracy: Single mode: ±2dB, multi-mode: ±4dB

IOR Setting: 1.2000~1.7000, 0.0001 step

Units: Km, miles, feet

OTDR Trace Format

Telcordia universal, SOR, issue 2 (SR-4731)

OTDR: User selectable automatic or manual set-up

VFL Module

Wavelength: 650nm(±20nm)

Output Power: 10mw,CLASSIII B

Test Range: 12km

Connector: Universal 2.5mm interface

Launching Mode: CW/2Hz

OPM Module

Wavelength Range: 800~1700nm

Calibrated Wavelength: 850/1300/1310/1490/1550/1625/1650nm

Test Range: Type A: -60~+5dBm (standard); Type B: -40~+23dBm(optional)

Resolution: 0.01dB

Accuracy: ±0.35dB±1nW

Connector: FC/UPC or SC/UPC or customized

LS Module (Laser Source)

Working Wavelength: Consistent with OTDR (Except 850nm/1300nm)

Output Power: ≥-10dBm

Output Mode: CW/270Hz/1kHz/2kHz

Accuracy: ±0.5dB

Connector: FC/UPC or SC/UPC or customized

General Specification

Dimension: 253×168×73.5mm/1.5kg (battery included)

Display: 7 inch touch screen TFT-LCD with LED backlight

Interface: 1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1)

Power Supply: 10V(dc)/4A, 100V(ac) to 240V(ac), 50~60Hz

Battery

7.4V(dc)/5.2Ah lithium battery (with air traffic certification)

Operating time: 6 hours①, Telcordia GR-196-CORE

Charging time: <4 hours (power off)
