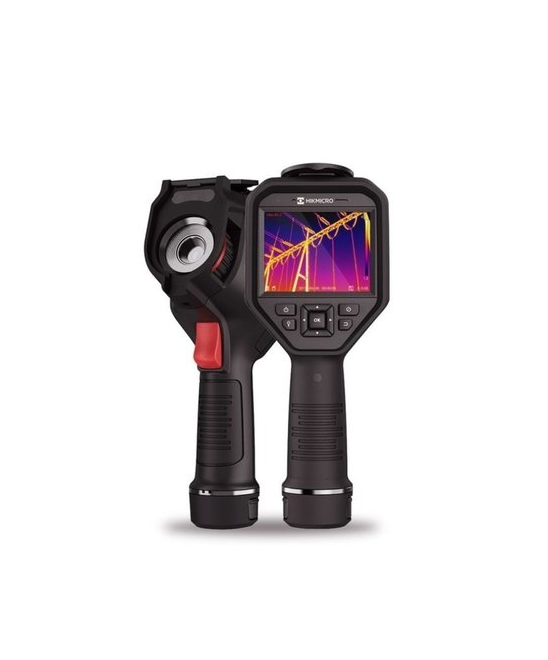

HIKMICRO M31 Thermal Imaging Camera (-20 - 650°C, 384 x 288px)

Infrared Image

IR Resolution: 384 x 288 (110,592 pixels)

NETD: < 30mK (@ 25 °C, F#=1.0)

Image Frequency: 30Hz

Pitch Detector: 17 μm

Spectral Range: 7.5 to 14 μm

Focal Length: 6.4mm

F-number: F1.0

Field of View (FOV): 41.1°×30.5°

Spatial Resolution (IFOV): 1.87 mrad

Focus Mode: Manual Focus

SuperIR: 768 x 576 (442,368 pixels)

Min. Focus Distance: 0.1 m (0.32ft)

Image Display

Visual Camera: 3264 × 2448 (8 MP)

Display: 640 × 480 Resolution, 3.5" LCD Touch Screen

Screen Brightness: Manual

Digital Zoom: 1.0x to 8.0x continuous

Image Modes: Thermal/Visual/Fusion/PIP/Blending

Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red

Focus Mode Palette: Above/Below/Interval

Color Alarm: Above/Below/Interval/Insulation

Measurement and Analysis

Object Temperature Range:

Range -20℃ to 150℃（-4°F to 302°F)

Range 100℃ to 650℃（212°F to 1202°F）

Accuracy: Max (±2°C/3.6°F, ±2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)

Measurement Tools: Center Spot, Hot Spot, Cold Spot

User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles

Level and Span Mode: Auto/Manual/1-Tap Touch-screen

Data Storage and Communication

Storage Media: Removable 64 GB Micro SD Card

Image Storage Capacity: Approx. 100,000 Images

Annotations: Voice note: max. 60 seconds; Text note: max. 200 characters

Video Storage Capacity: Approx. 300 hours

Video File Format: MP4 video and radiometric video

General

Wi-Fi: 802.11 b/g/n (2.4 GHz and 5 GHz)

Bluetooth: Bluetooth 4.2

USB Interface: USB Type-C

Battery Type: Interchangeable and rechargeable Li-ion battery

Battery Operating Time: Approx. 4 hours

Battery Charging Time: Approx. 4 hours fully charged

Power Saving Mode: Forks

Protection Level: IP54

Drop Test Height: 2 m (6.56 ft)

Working Temperature Range: -20°C to 50°C (-4°F to 122°F)

Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)

Relative Humidity: < 95% non-condensing

Weight: Approx. 720g (1.59 lb)

Dimension:244 × 100 × 104 mm (9.6 × 3.9 × 4.1 in)

Tripod Mounting: UNC ¼”-20
