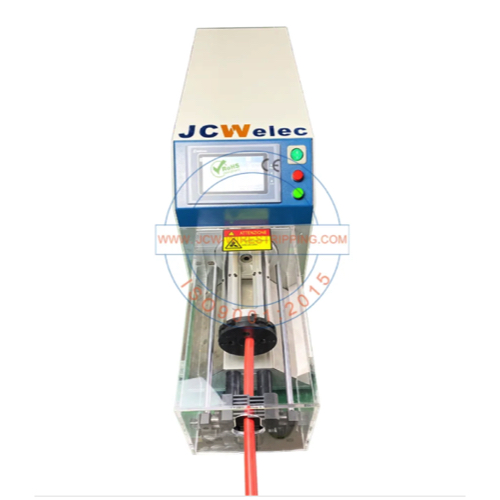

JCW JCW- S600C Max Coaxial Cable Stripping Machine (0.1-350 mm)
Manufacturer: JCW Model: JCW- S600C Max - Contact
Function: Coaxial cable, multistep stripping, rotary stripping, full stripping, partial stripping.
Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc.
Cable diameter: 2-25 mm
Stripping length: 0.1-350 mm
Cutting depth increment: 0.01 mm
Blades: 4 pcs
Stripping steps: 9
Production rate: 250-400 pcs/h
Centralizer: Yes
Data library: Yes
OEM: Yes
Display: 4.3" color touchscreen, English / Chinese [other languages on request]
Power supply: AC 110/220 V ± 10%, 50/60 Hz
Dimensions: L 1180 x W 235 x H 400 mm
Weight: 62 KG
• Heavy-duty coax stripping machine
• 2-25mm O.D, 95/200/300 mm strip length
• 4 pcs of blades, rotary stripping
• Minimize the force needed for pull-off
• Maximize the service life of the blades
• Multistep stripping up to max 9 steps
• Fully programmable, save programs with name
• Centralizer, no calibration needed after changing blades
