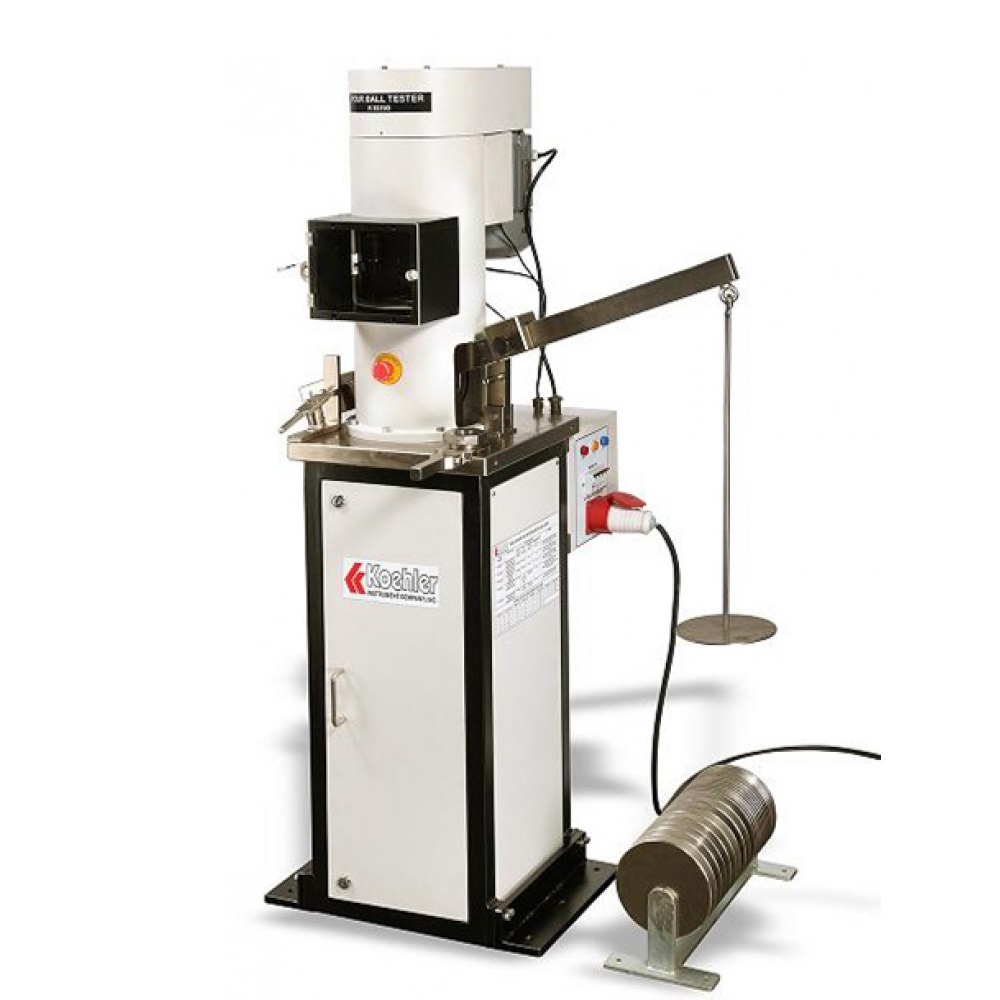

Koehler K93190 Four Ball Tester (1.5kW; 1200~1760rpm)

Determines the Wear Preventative (WP) and Extreme Pressure (EP) characteristics of lubricating oils and greases in sliding steel-on-steel applications.

Specifications

- Conforms to the specifications of: ASTM D2266, D2596, D2783, D4172, D5183*, IP 239

- Drive motor: 1.5 kW

- Test speeds: 1200, 1440, 1760 rpm

- Optional test speeds (min/max): 1000/3000, 300/3000 rpm

- Maximum axial load: 10000 N at 3000 rpm or 12000 N at 1800 rpm

- Test duration (min/max): 1/9999 min

- Test ball diameter: 12.7 mm

Electrical requirements: 380V 50Hz

Dimensions

- Net weight: 927 lbs (420.5kg)

Shipping information

- Shipping weight: 1200 lbs (544.3kg)

- Dimensions: 38x48x52 in. (96.5x121.9x132.1cm)

Included accessories

- Set of Weights

- Ball Chucks

- Ball Pot

- Ball Chuck Remover

- Ball Rack

- Ball Clamp Ring

- Ball Holder Base Disc

- Set of Hand Tools

- Torque Wrench

- Electrical Controller

- Connecting Cables

- Data Acquisition Software

- Calibration and Test Reports

- Ordering

Additional accessories

- K93105 Test Balls (Pack of 100)

- K93111 High Resolution Digital Microscope
