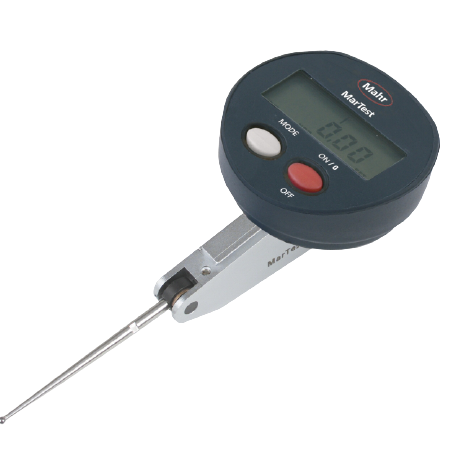

Mahr 4306120 Digital Test Indicator (800 EW, ± 0.25mm/± .010”)

Product type: 800 EW

Measuring range: ± 0.25mm/± .010”

Graduation value: 0.001mm/.00005”

Measuring force N: 0.07

Deviation range fe µm: 10

Total deviation range fges µm: 13

Hysteresis fu µm: 7

Partial measuring span ft µm: 5

Repeatability fw µm: 3

Standard: factory

Package contains: case, spanner for  changing the styli, stylus dia.  ø 2 mm, mounting shaft 800a8

Accessories:

• Stylus ø 1.0 mm, carbide, l = 14.5 mm, type 800 ts

• Stylus ø 2.0 mm, carbide, l = 14.5 mm, type 800 ts

• Stylus ø 3.0 mm, carbide, l = 14.5 mm, type 800 ts

• Stylus ø 2.0 mm, ruby, l = 14.5 mm, type 800 tsr

• Stylus ø 1.0 mm, carbide, l = 41.24 mm, type 800 tl

• Stylus ø 2.0 mm, carbide, l = 41.24 mm, type 800 tl

• Stylus ø 3.0 mm, carbide, l = 41.24mm, type 800 tl

• Stylus ø 2.0 mm, ruby, l = 41.24 mm, type 800 tlr

• Battery 3 V, CR 2032

• Data connection cable RS232C (2 m)

• 800 EWu Data connection cable USB (2 m)
