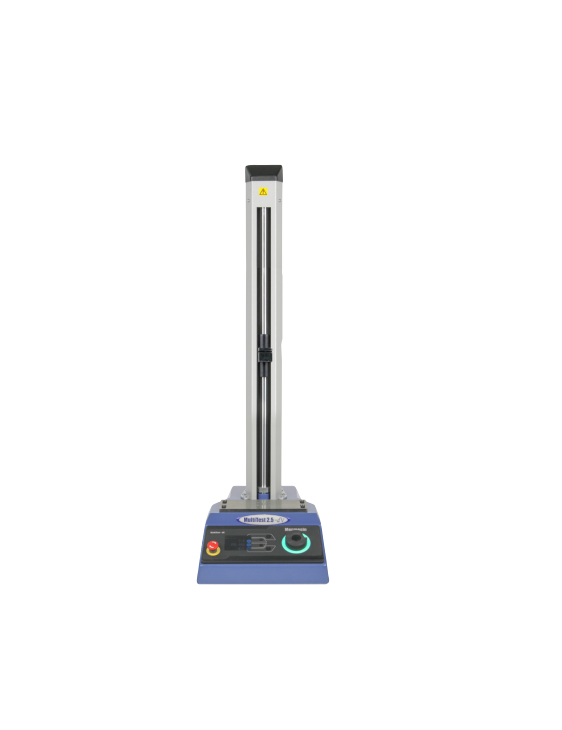

Mecmesin MultiTest 2.5-dV Motorised Test Stand (2.5 kN / 250 kgf / 550 lbf)

Rated capacities: 2.5 kN/ 250 kgf/ 550 lbf

Displacement:

Crosshead travel: 507 mm (20”)

Maximum headroom: 526 mm (20.7”)

Displacement resolution: 0.001 mm/ 0.000025in

Positional accuracy: ±0.130/300 mm (±0.005/11.81”)

Speed:

Speed range:

0.1 to 1200 mm/min

0.004 to 47.2 in/min

Speed accuracy: ±2% of indicated speed or ±20 µ/min, whichever is greater

Speed resolution: 0.1 mm/min/ 0.004 in/min

Maximum no. of cycles per test: 9999

Dimensions

Height: 941 mm (37”)

Width: 290 mm (11.4”)

Depth: 414 mm (16.3”)

Vertical daylight: 588 mm (23.1”)

Throat depth: 70.5 mm (2.8”)

Weight: 24 kg (53 lbs)

Electrical supply

Voltage: 230V AC 50 Hz/ 110V AC 60 Hz

Maximum power requirements: 250 W
