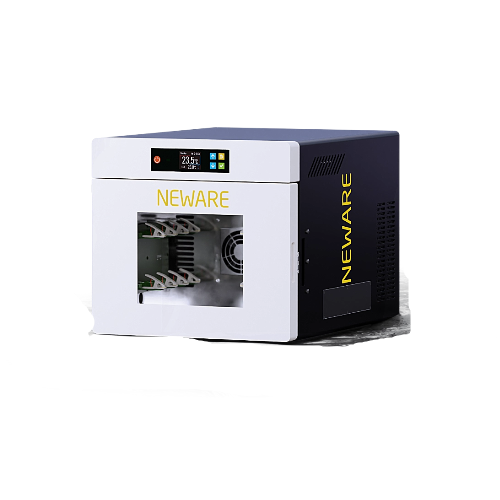

NEWARE MHW-25-S-16CH Mini All-in-One Testing System (25L, 15～60°C)

Dimensions & Weight

Nominal volume: 25 liters

Inner chamber dimensions: W360 × D300 × H220 mm

Overall dimensions: W440 × D550 × H390 mm

Weight: Approximately 45 kg

Performance

Standard test conditions: Ambient temperature +25 °C, RH ≤ 85%, no load

Test standard: GB/T 5170.2-2017 (Temperature Test Equipment)

Temperature range: 15 °C ~ 60 °C

Temperature fluctuation: ≤ ± 0.5 °C (no load, stable)

Temperature deviation: ± 2.0 °C (no load, stable)

Heating time: 25 °C → 60 °C ≤ 50 minutes

Cooling time: 25 °C → 15 °C ≤ 60 minutes

Structure & Materials

Chamber construction:

• Outer shell – Cold-rolled steel, powder-coated finish

• Inner chamber – SUS304 stainless steel

• Insulation – Polyurethane foam

Temperature conditioning system: DC fan + thermoelectric (Peltier) heating/cooling module

Standard configuration:

• Door – Double-layer tempered glass with frame

• Cell fixture plates – 2 sets

• LED lighting

• Touch-screen control panel

• Thermoelectric module for both cooling and heating

Electrical Control System

Controller: Digital LED display + touch-key interface

Setting method: Via touch keys

Control mode: Automatic PID control; forced-air circulation and Peltier module power adjustment to maintain temperature balance

Communication: Standard Ethernet port

Cell Testing & Integration System

Cell tester: 5 V / 100 mA × 16 channels (Model BT-4016Q-5V100mA-TK-HWX)

Control software (via PC interface) – operation steps:

Launch the software interface

Select the test chamber to be controlled

Set the temperature and operating conditions

Monitor the operating status in real time
