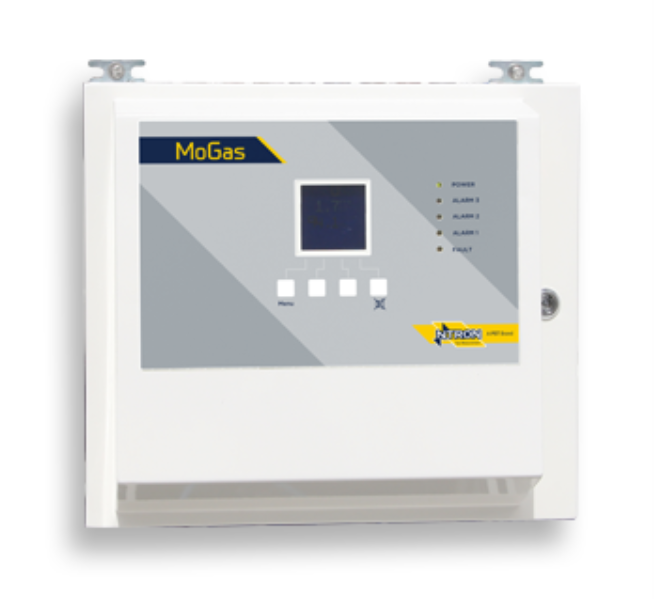

NTRON MoGas-2 Medical gas analyzer (Paramagnetic:0~100 %, 6mm, O2 / CO / CO2)
Manufacturer: NTRON Model: MoGas-2 P/N: 02-572 - Contact
Sensor type: O2/CO/CO2
Standard dimensions: 422mm (w) x 360mm (h) x 188mm (d)
Weight: 16 kg
Measurement ranges: Paramagnetic (0...100 %)
Moisture option available
Power requirements: 100…240 V AC / 50…60 Hz power supply
Enclosure: Painted mild steel (RAL 9010)
Visual indication: LCD display
Alarm levels: Output 4…20 mA per channel. One common fault relay.
2 Alarm Contacts per Channel.
Sample gas: Positive pressure samples up to 10 barg within enclosure.
Sample connection: 6mm
Electrical connections: Two-off M20 gland entry holes
User interface: 4-button multifunctional keypad
Temperature range: Overall operating: -20…+50°C
Environmental rating: IP65
Humidity range: 15 % to 95 % relative, non-condensing
Electromagnetic compatibility: CE marked and tested to EN61000-6-4; EN61000-6-2; EN55022; EN61000-3-3; EN61000-3-2
