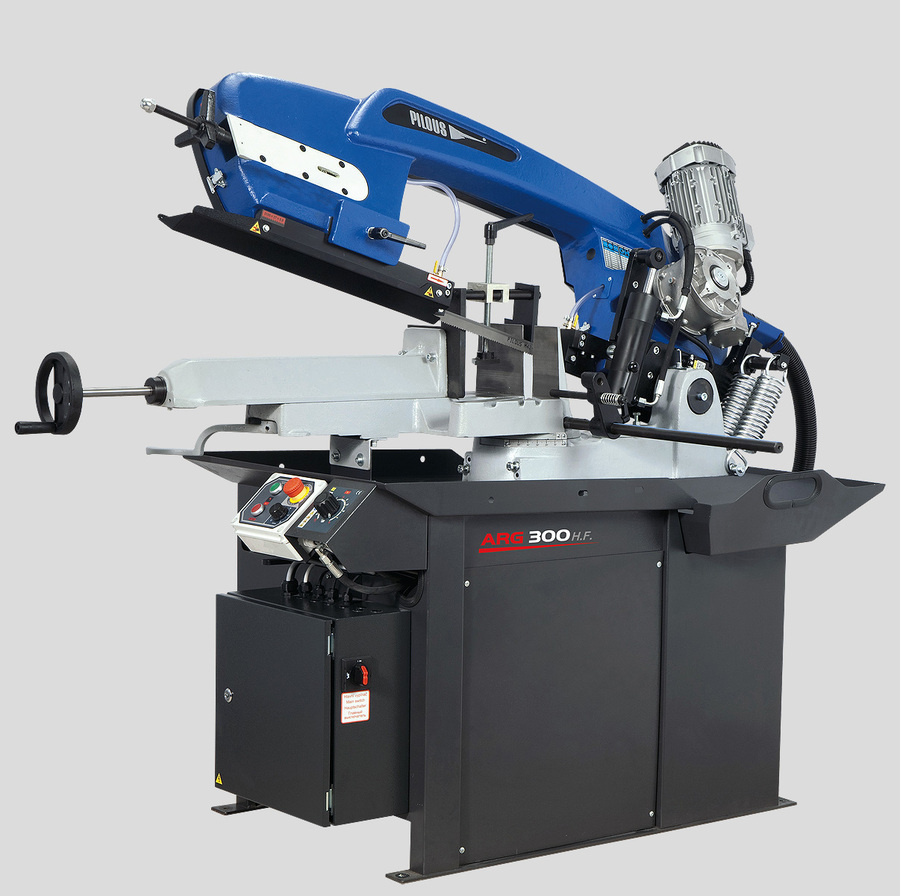

Pilous ARG 300 H.F. Band saw for metal - hydraulic-gravitation (15-90 m/min, 910 mm)
Manufacturer: Pilous Model: ARG 300 H.F. - Contact
Cutting angle:
- At 90°
Round: 300mm
Square: 290mm
Rectangular: 375 x 190mm
- At +45°
Round: 240mm
Square: 225mm
Rectangular: 240 x 160mm
- At +60°
Round: 155mm
Square: 150mm
Rectangular: 150 x 150mm
Main motor: 400 V, 50 Hz, 2,2 kW
Pump motor: 400 V, 50 Hz, 0,05 kW
Hydraulic motor unit: 400 V, 50 Hz, 0,18 kW
Saw blade speed: 15-90 m/min.
Working height of vice: 910 mm
Hydraulic system oil: cca 6 l (ISO 6743/4-HM, DIN 51 524 part 2-HLP)
Coolant tank: cca 15 l
Machine weight: 470 kg
