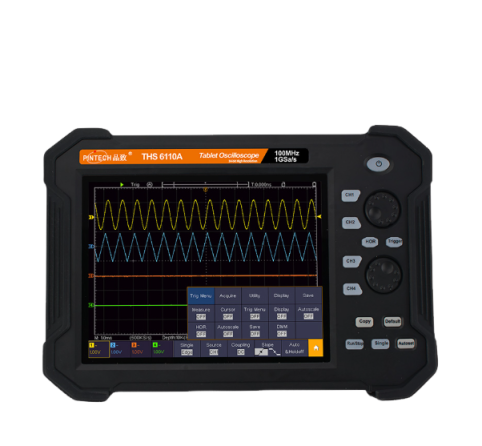

Pintech THS 6110 Portable Oscilloscope (4 channels, 100MHz, 8 bits)

Bandwidth: DC-100MHz

Sampling rate: 1GS/s

Vertical resolution: 8 bits

Storage Depth: 40M

Waveform refresh rate: 45,000 wfms/s

Time base scope: 1ns/div - 1000s/div, step by 1 - 2 - 5

Channel: 4

Display: 8" color LCD, 800 x 600 pixels display，multi-touch screen

Input impedance: 1MΩ ± 2%, in parallel with 15pF ± 5pF

Input voltage: 1MΩ ≤ 300Vrms;

Probe attenuation factor: 0.001X - 1000X, step by 1 - 2 - 5

Frequency stability: ±2.5ppm

Input coupling: DC, AC, GND

Vertical sensitivity: 1mV/div - 10V/div (at input)

Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, UART(RS232), and CAN

Decoding type: I2C, SPI, RS232, CAN

Trigger Mode: Auto,normal,single

Mathematical operations: ＋, －, ×, ÷, FFT,   Digital Filter

Waveform storage: 100 groups

Communication: USB, Pass/Fail, LAN, WIFI

Frequency meter: In the tank

Battery: 7.4V, 8000mAh，5 hours operation

Dimension: 270x191x48（mm）
