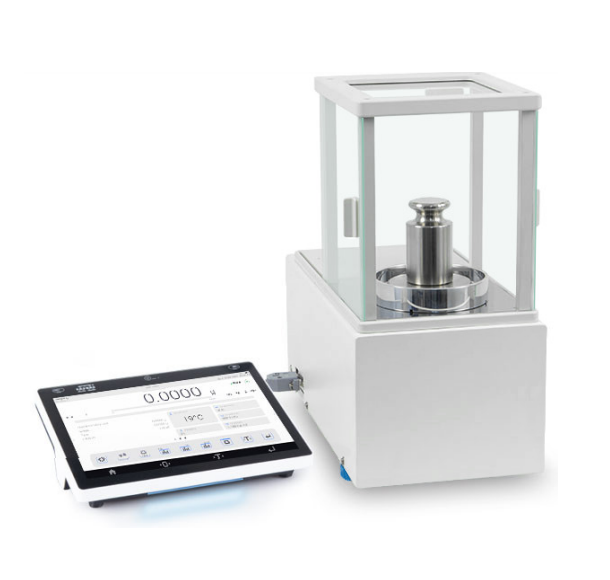

RADWAG WAY 1200.5Y.KO Mass Comparator (1200 g ; 0.1 mg)

Metrological parameters:

E1 Calibration Range : -

E2 Calibration Range : 500 g – 1 kg

F1 Calibration Range: 100 g – 1 kg

F2 Calibration Range : 5 g – 1 kg

M1 Calibration Range: 1 g – 1 kg

M2 Calibration Range : 1 g – 1 kg

Maximum capacity [Max] : 1200 g

Readability [d]: 0.1 mg

Standard repeatability [5% Max] : 0.08 mg

Standard repeatability [Max] : 0.1 mg

Permissible repeatability : 0.2 mg

Eccentricity (tested load): 1d / 1 mm

Electric compensation range -:  0 – +1200 g

Stabilization time : 10 s

Adjustment: internal

Physical parameters:

Display : 10″ graphic colour touchscreen

Weighing pan dimensions : ø80 mm

Weighing device dimensions : 385×203×407 mm

Controling device dimensions : 249×170×72 mm

Anti-draft chamber dimensions :  —

Packaging dimensions : 860×750×560 mm

Net weight : 16 kg

Gross weight : 31 kg

Communication interface:

Communication interface : 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi,Hotspot

Environmental conditions:

Operating temperature : +15 – +30 °C

Operating temperature change rate: ±0.5 °C / 12 h (±0.3 °C / 4 h)

Relative humidity : 40% – 60%

Relative humidity change rate : ±3% / 4 h
