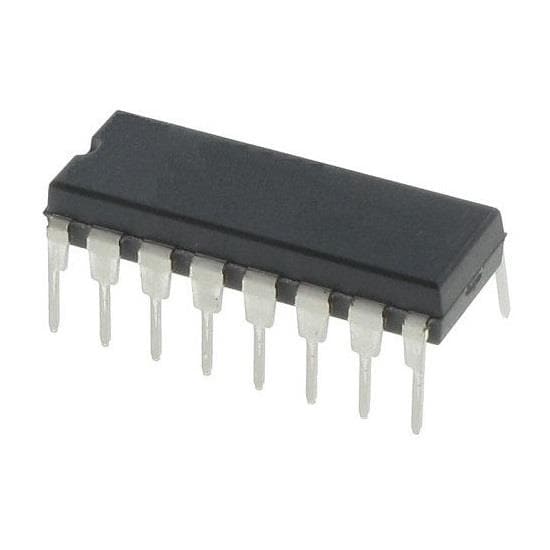

Vishay Siliconix DG409DJ-E3 Multiplexers PDIP-16 MULTIPLX SW 4CH

Width: 7.11 mm

Height: 3.81 mm

Length: 21.33 mm

Supply Type: Single Supply, Dual Supply

Unit Weight: 1.628 g

Configuration: 2 x 4:1

On Time - Max: 150 ns

Mounting Style: Through Hole

Off Time - Max: 150 ns

Number of Channels: 4 Channel

Dual Supply Voltage: +/- 15 V

On Resistance - Max: 100 Ohms

Supply Current - Max: 500 uA

Supply Voltage - Max: 36 V

Supply Voltage - Min: 5 V

Switch Voltage - Max: 15 V

Pd - Power Dissipation: 450 mW

Operating Supply Voltage: 5 V to 36 V

Maximum Dual Supply Voltage: +/- 20 V

Minimum Dual Supply Voltage: +/- 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
