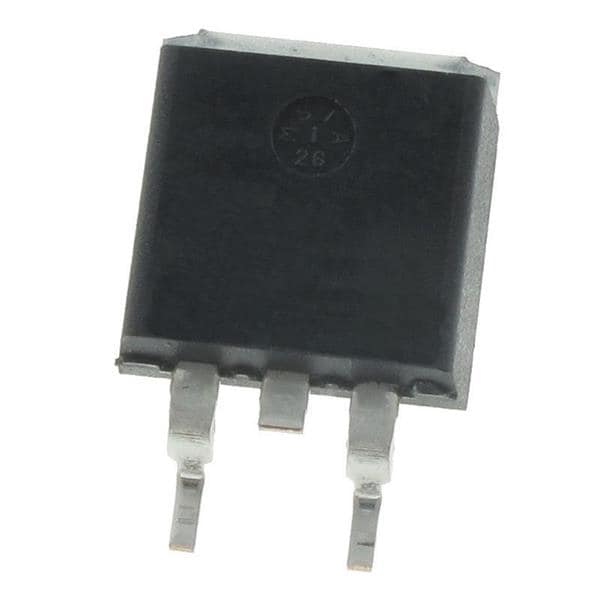

Vishay Siliconix SUM55P06-19L-E3 MOSFETs 60V 55A 125W

Width: 9.65 mm

Height: 4.83 mm

Length: 10.67 mm

Fall Time: 230 ns

Rise Time: 15 ns

Technology: Si

Unit Weight: 4 g

Channel Mode: Enhancement

REACH - SVHC: Details

Configuration: Single

Mounting Style: SMD/SMT

Transistor Type: 1 P-Channel

Qg - Gate Charge: 76 nC

Number of Channels: 1 Channel

Transistor Polarity: P-Channel

Pd - Power Dissipation: 125 W

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Typical Turn-On Delay Time: 12 ns

Typical Turn-Off Delay Time: 80 ns

Id - Continuous Drain Current: 55 A

Maximum Operating Temperature: + 175 C

Minimum Operating Temperature: - 55 C

Forward Transconductance - Min: 20 S

Rds On - Drain-Source Resistance: 19 mOhms

Vds - Drain-Source Breakdown Voltage: 60 V

Vgs th - Gate-Source Threshold Voltage: 1 V
