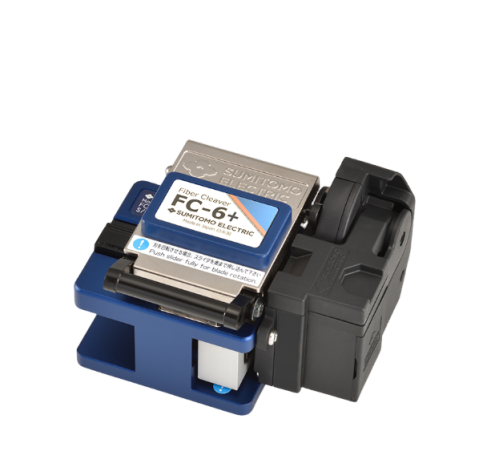

SUMITOMO FC-6+ Handheld fiber cleaver (1~12 ribbon fibers, Φ 125 µm, 60000 fiber)
Manufacturer: SUMITOMO Model: FC-6+ P/N: FC-6R+ - Contact
Features: One-action cleave, Applicable to universal fiber count, Automatic blade rotation
Applicable fiber
Material: Sillica glass
Cladding diameter: Φ 125 µm
Fibre count: Single to 12-fiber ribbon
Single fibre adapter: Pre-fitted (AP-FC6M)
Cleave length: 5-20 mm (Ф 0.25) / 10-20 mm (Ф0.9) / 10mm (Ribbon)
Cleave angle (Typ.): 0.5 degrees
Off-cut collector: Automatic (CU-FC6+)
Dimensions and Weight: 100x81x63mm, 440g
Spare blade (Field replaceable): FCP-20BL(7R)
Blade life: 60,000 fibres (2,500 fibres x24 positions)
