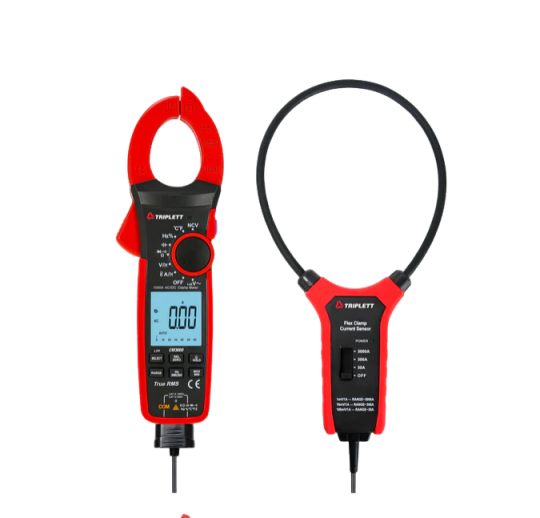

Triplett CM3000 AC/DC Clamp Meter with 3000A AC Flex Clamp (True RMS, 1000ADC, 3000AAC)
Manufacturer: Triplett Model: CM3000 P/N: 614395005009 - Contact
True RMS: Yes
Display counts: 6000 count with analog bargraph
AC Current: 1000A
ACA Accuracy: ±2%
DC Current: 1000A
AC/DC Voltage: 1000V
Resistance: 60MΩ
Temperature: -40 to 1832°F (-40 to 1000°C)
Capacitance: 60mF
Frequency: 1MHz
Duty Cycle: 10.0 to 90.0%
Continuity: <50Ω
Lo Pass Filter (LPF): Yes
Lo Z Mode: Yes
NCV Detector: >50V
Inrush Current: 100ms
18" (45.7cm) Flex Clamp Sensor: 30A/300A/3000A AC
Safety Category: CAT IV-600V
Power: (3) AAA batteries
Dimensions: 10.7 x 3.2 x 1.7" (272 x 81 x 43.5mm)
Weight: 14.8oz (420g)
