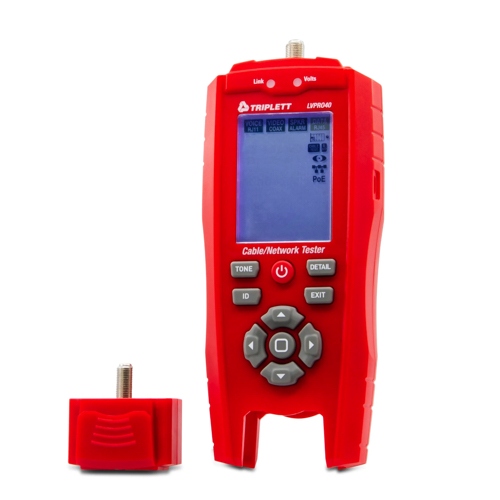

Triplett LVPRO40 Multifunctional Low Voltage Cable/Network Tester (1999ft (610m))
Manufacturer: Triplett Model: LVPRO40 P/N: 614395005542 - Contact
Cable Types:
UTP, FTP and SSTP twisted pair, telephone, speaker and alarm wire
50Ω, 75Ω, 93Ω coax cable
Cable Tests: Opens, shorts, reversals, split pairs, wiremap, propagation delay, skew, ohms Feet/metric selectable
Cable Length Test: Range: 1999ft (610m) Resolution: 1.5ft (0.5m)
Adjustable and standard VOP settings
RLQ (Return Loss Quality)
Accuracy: ±(2% + 3ft/1m)
Network Devices: 10M/100M/1G/10G advertised speed and cable pairs used
PoE pairs and cable pairs used
CCTV camera video signal: measure peak to peak volts
CATV (cable TV) requires min 30mV peak to peak signal
Battery test: 100mA loaded test for 12V alarm
POE detection: POE standards: 802.3AF, 802.3AT, 802.3BT
Ethernet Port Test: Yes
Cable Location: Yes
Port Blink: Lights the LED on the port switch
Power: (3) AA batteries
Dimensions: 7.1 x 3.2 x 1.5” (181 x 81 x 37.2mm)
Weight: 9.2oz (260g)
