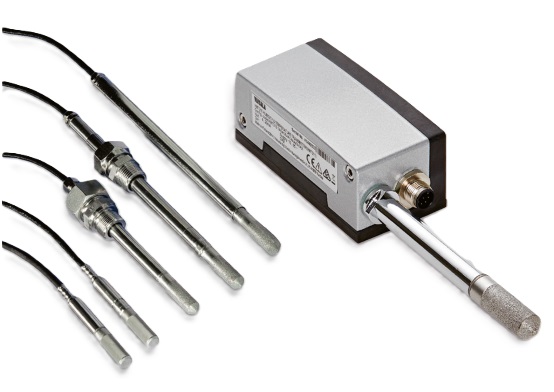

VAISALA HMT313 Humidity and Temperature Transmitter (−40 … +80 °C (−40 … +176 °F) / −40 … +120 °C (−40 … +248 °F))
Manufacturer: VAISALA Model: HMT313 Origin: Finland - Contact
Temperature: −40 … +80 °C (−40 … +176 °F) or −40 … +120 °C (−40 … +248 °F)
- Typical accuracy at +20 °C (+68 °F): ±0.2 °C (±0.36 °F)
- Temperature sensor: Pt100 RTD Class F0.1 IEC 60751
- Relative Humidity:
Measurement range: 0 … 100 %RH
- Two analog outputs, selectable and scalable:
0 … 20 mA or 4 … 20 mA
0 … 5 V or 0 … 10 V
1 … 5 V available through scaling
- Typical accuracy of analog output at +20 °C: ±0.05 % full scale
- Operating voltage: 10 … 35 VDC
- IP rating: IP66
- Probe cable length: 2, 5, or 10 m (6 ft 7 in, 16 ft 5 in, 32 ft 10 in)
