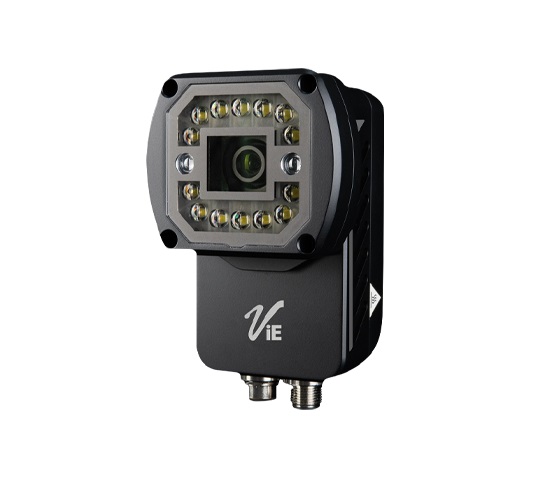

ViE Technologies XS-210 Smart Code Reader Solution (5.2mp; 8mm lens; 2560 × 2048; half polarized White LED)

Receiver:

Sensor: CMOS (Mono, Global Shutter)

Resolution: 2560 × 2048

Focus: Mechanical Auto Focus

Maximum Frame Rate (FPS): 40

Focal Length:

Standard Range: 8 mm (0.3149”)

Pixel Size: 3.2 μm × 3.2 μm

Sensor Size: 1/1.7”

Emitter:

Illumination Light Source Option: High Intensity Red / White / Blue / Infrared LED *1

Lens Cap Option: Polarised

Reading Specifications:

Supported Symbols: 2D Codes: QR Code, Data Matrix, Micro QR and PDF417

Barcodes: Code 39, Code 93, Code 128, Codabar, EAN8, EAN13, ITF25, ITF14, MATRIX25, UPCA, UPCE, MSI, CODE11, INDUSTRIAL25, CHINAPOST and PHARMACODE

Minimum Resolution: 2D Codes: 0.030 mm (0.0011”), Barcodes: 0.010 mm (0.0003”)

Reading Distance:

Standard Range: 25 mm to 600 mm (0.9842” to 23.6220”)

Reading Field of View (Working distance at 300 mm (11.8110”))

Standard Range: 307.20 mm x 245.76 mm (12.0944” x 9.6755”)

Maximum Reading Speed: 90 codes / sec

I/O Specifications

Number of Control Inputs: 3

Number of Control Outputs: 3

Ethernet Supported Protocol: SmartSDK, TCP Client, Serial, FTP, TCP Server, ModBus and UDP

Serial Communication Standard: RS-232C Compliant

Environment Resistance

Enclosure Rating: IP67 *4

Surrounding Temperature: 0 to + 45 ° C (32 to 113 ° F)

Ambient Storage Temperature: -30 to + 70 ° C (-22 to 158 ° F)

Rating

Power Consumption: 24 W

Power Supply Voltage: 24 VDC

Current Consumption: 1 A

Weight: Approx. 540 g (1.1905 lb.)

Dimension (L x W x H): 78.20 mm x 63.65 mm x 125.25 mm (3.0787” x 2.5059“ x 4.9311”)
