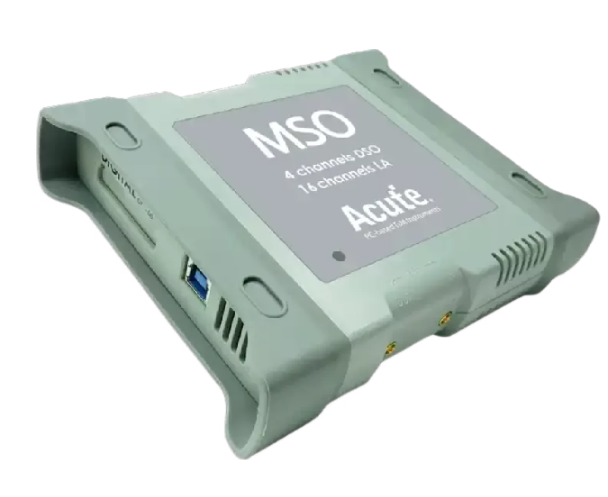

Acute MSO3124B Mixed signal oscilloscope (16CH, 200 MHz, 1GS/s)

DSO Spec.

Power source: USB bus-power (+5V)

Static power consumption: 4.5W

Max power consumption: 7.7W

Acquisition Mode: Sample, Average, Envelope[*], Peak detect[*], High resolution

8 bits Sampling [Record length]: 1 Ch @ 1 GS/s [512 Mpts]；2 Ch @ 500 MS/s [256 Mpts]；4 Ch @ 250 MS/s [128 Mpts]

Input channels: 4

Input coupling: AC/DC

Input impedance: 1 MΩ ∥ <19 pF

Overvoltage protection: ± 100 V (DC+AC peak)

Ch-Ch isolation: 50dB @DC to 100MHz; 40dB @ 100MHz to 200MHz

Ch-Ch skew: 100 ps between two channels with the same scale & coupling settings

Bandwidth: 200 MHz

Rise time: 1.75 ns @ 200 MHz; 3.5 ns @ 100 MHz; 7 ns @ 50 MHz

Resolution: 8 bits

Input sensitivity: 2 mV/div to 10 V/div

Offset range:

±150 V @ 2, 5, 10 V/div;

±15 V @ 0.2, 0.5, 1 V/div;

±1.5 V @ 2, 5, 10, 20, 50, 100 mV/div

DC accuracy: ±3% of Full-Scale

Bandwidth limit: 20 MHz, 100 MHz or Full

Protocol Trigger / Decode:

BiSS-C, CAN 2.0B/CAN FD, DALI, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, MDIO, Mini/Micro LED, MIPI I3C 1.1, MIPI RFFE 3, MIPI SPMI 2, Modbus, PMBus, ProfiBus, SENT, SMBus, SPI, SVI2, UART, USB PD 3, USB1.1

LA Spec. (Logic Analyzer)

Timing Analysis (Asynchronous，Max. Sample Rate): 2 GS/s

State Clock Rate (Synchronous，External Clock): 250MHz

Storage: Conventional Timing, Transitional Timing

Channels: 16

Timing Analysis: Available Chs (Conventional / Transitional Timing) - Memory per Ch

2GHz Timing [Available Chs] - Memory per Ch: [8/7]-512 Mpts

1GHz Timing [Available Chs] - Memory per Ch: [16/14]-256 Mpts

500MHz Timing [Available Chs] - Memory per Ch: [16/16]-256 Mpts

250MHz Timing [Available Chs] - Memory per Ch: [16/16]-256 Mpts

Channel to channel skew: < 1ns

Input channels: 16

Input impedance: 75KΩ ∥ <2pF

Max. (Non-destructive): ±50V

Input operation: ±30V

Input sensitivity: 0.25Vpp @50MHz, 0.5Vpp @150MHz, 0.8Vpp @250MHz

Threshold group: 2 (D0~D7, D8~D15 & CK0)

Threshold range: ±30V

Threshold resolution: 50mV

Threshold accuracy: ±100mV + 5%*Vth

Trigger resolution: 500ps

Trigger types: External, Manual, Multi Level, Setup/Hold Violation, Single Level, Timeout, Width

Protocol Trigger:

 BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, LPC, MDIO, Mini/Micro LED, MIPI I3C 1.1, MIPI RFFE 3, MIPI SPMI 2, Modbus, PMBus, Profibus, SENT, SMBus, SPI, SVI2, UART, USB PD 3.1, USB1.1

Protocol Analyzer:

BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, MDIO, MIPI I3C 1.1, MIPI RFFE 3, Modbus, PMBus, Profibus, SMBus, SPI, UART, USB PD 3.1, USB1.1
