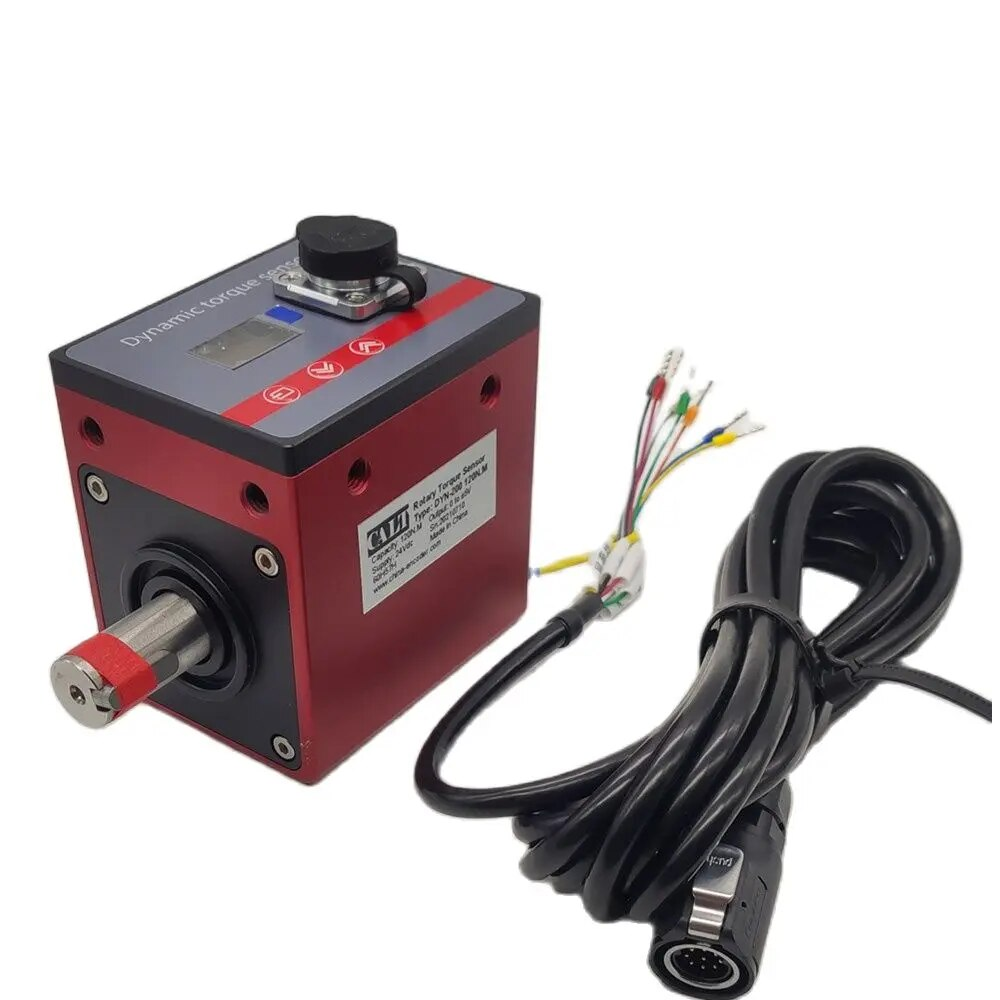

CALT DYN-200 Rotary Torque Sensor (±10000N.m)

Capacity: ±10000N.m

Maximum torsion angle: 2.60*10rad(0.149°)

Speed Capacity: ≤15000rpm

Moment of inertia: 0.38kgcm

Speed Signal: 120/60/10pulse/turn, 4-20mA, 0-20mA, 0-5V, 0-10V

Natural frequency of rotor vibration: 19.4kHz

Zero Balance: ±2% F.S

Torsion constant: 3.85*10Nm/rad

Non-linearity: 0.5% F.S

Material: Stainless Steel

Hysteresis: 0.5% F.S.

Stability per year: 0.3%/year

Repeatability 0.2% F.S.

Load resistance: ＞2kΩ

Creep (30 Min): 0.03% F.S

Operating Temp Range: DC24V 0.2A

Temp Effect on output: 0.01% F.S./10℃

Current Consumption: ＜150mA

Temp Effect on Zero: 0.01% F.S. /10℃

Work Environment: -10-50℃ 0-85%RH

Response Time: 0.6ms(50%response)

Safe Overload: 200%

Response frequency: 1kHz

Cable Specifications: Φ5*3m

Acquisition Speed: 550/1200times/second

Cable ultimate pull: 10kg

Display Range: -99999-99999
