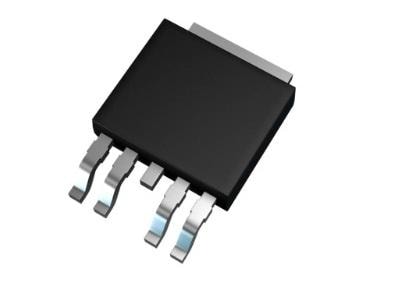

Diodes Incorporated ZXTR1005K4-13 High Voltage Linear Regulator 100V Input 5V 50mA 0.05A 5V 57dB 0.3mA
Manufacturer: Diodes Incorporated Model: ZXTR1005K4-13 - Contact
Polarity: Positive
Output Type: Fixed
Unit Weight: 250 g
Mounting Style: SMD/SMT
Output Current: 50 mA
Output Voltage: 5 V
Line Regulation: 2 mV
Load Regulation: 20 mV
Number of Outputs: 1 Output
Quiescent Current: 650 uA
Input Voltage - Max: 100 V
Input Voltage - Min: 10 V
Pd - Power Dissipation: 2.3 W
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
PSRR / Ripple Rejection - Typ: 57 dB
