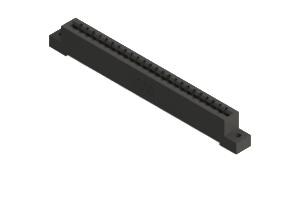

EDAC 887-024-544-102 Receptacles High Temp Card Edge Connector
Manufacturer: EDAC Model: 887-024-544-102 - Contact
Pitch: 3.96 mm
Current Rating: 3 A
Mounting Angle: Vertical
Mounting Style: Panel Mount
Number of Rows: 1 Row
Board Thickness: 1.57 mm
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Polyphenylene Sulfide (PPS)
Termination Style: Solder Pin
Number of Positions: 24 Position
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
