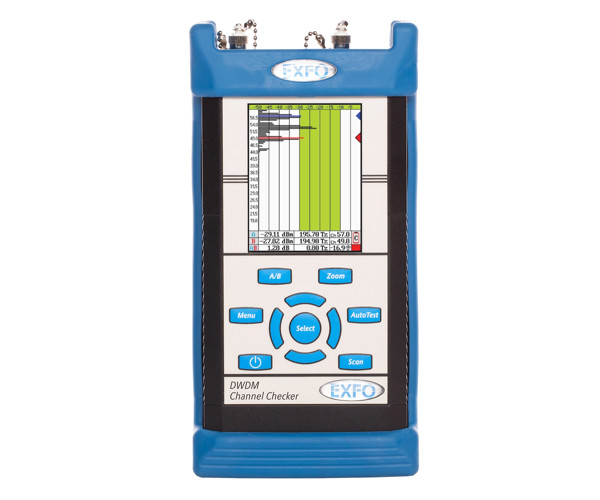

EXFO FOT-5205 DWDM channel checker (1527.99 - 1565.90 nm (196.20 - 191.45 THz))

SPECTRAL MEASUREMENT

Wavelength range: 1527.99 - 1565.90 nm (196.20 - 191.45 THz)

Channel spacing: DWDM 50 GHz and 100 GHz

Wavelength uncertainty (nm): ±0.1

POWER MEASUREMENT

Dynamic range per channel (dBm): 10 to –48

Maximum total safe power (dBm): 28

Absolute power uncertainty (dB): ±1

OPTICAL MEASUREMENT

Optical rejection ratio at 0.4 nm (50 GHz) (dB): 40

PDL (dB) : ±0.3

ORL (dB) : > 35

Measurement time (s) : < 0.5

GENERAL SPECIFICATIONS

Temperature

Operating: —10 °C to 50 °C (32 °F to 120 °F)

Storage: —20 °C to 50 °C (—4 °F to 120 °F)

Connectors: Interchangeable SC and FC fiber adapters. Choice of UPC or APC model.

Size (H x W x D): 194 mm x 99 mm x 40 mm (7 5/8 in x 3 7/8 in x 1 1/2 in)

Weight: 0.72 kg (1.6 lb)

Battery: Rechargeable NiMH - 4 hours operating time

Power supply: 100-240 universal US, GB, EU, AU mains
