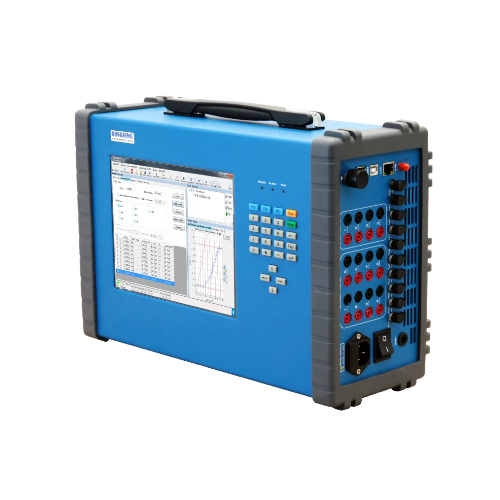

Kingsine KF86P Universal Relay Test Set

AC current source

Amplitude & Power: 6×35A @ 424VA max each;

                                 3×70A @ 670VA max each;

Accuracy: <0.05%Rd+0.02%Rg Typ.

                <0.15%Rd+0.05%Rg Guar.

Range:

Range I: 3A

Range II: 35A

Automatic Range

DC Offset: <3mA Typ./ <10mA Guar

Resolution: 1mA

Distortion: <0.025%Typ. / <0.07% Guar.

Ascends/Descent response: <100us

DC Current source

Amplitude & Power: 3×20A @ 400W max

Accuracy: ±5mA @ <1A

                  ±0.2% @ ≥1A

Ascends/Descent response: <100us

AC voltage source

Amplitude & Power: 6×310V @ 105VA max each

Accuracy: <0.015%Rd+0.005Rg Typ.

                <0.04%Rd+0.01Rg Guar.

Range:

Range I: 30V

Range II: 310V

Automatic Range

DC Offset: <10mV Typ./ <60mV Guar

Resolution: 1mV

Distortion: <0.015%Typ. / <0.05% Guar.

Ascends/Descent response: <100us

DC Voltage source

Amplitude & Power: 6×350V @ 100W max

                                 3×700V @ 150W max

Accuracy: ±10mV @ <5V

                 ±0.2% @ ≥5V

Ascends/Descent response: <100us

Frequency & Phase Angle

Frequency Range: DC ~ 1000Hz, 3000Hz transient

Frequency Accuracy: ±0.5ppm

Frequency Resolution: 0.001Hz

Phase Range: -360°~360°

Phase Accuracy: <0.02° Typ. / <0.1° Guar. 50/60Hz

Phase Resolution: 0.001°

Auxiliary DC Supply (Battery Simulator)

Range: 8 ~ 60Vdc (Max Load Current 1.16A) Accuracy＜2%

            60 ~ 120Vdc (Max Load Current 0.58A) Accuracy＜1%

            120 ~ 350Vdc (Max Load Current 0.2A) Accuracy＜0.5%

Power: >69W max

Resolution: 10mV

Protection: Short-circuit protection

Overload Protection: Yes

Isolation: Isolated from other terminal

Binary input

Electrical isolation: 10 pairs of electrical isolated each

Input impedance: 5 kΩ…13kΩ（Empty contact）

Input feature: 0 V～300Vdc Or dry contact

(Binary 1~4 inputs turn over potential can be programmable)

Sampling Rate: 10kHz

Time resolution: 10us

Time measurement range: infinity

Time accuracy: ±1ms @ <1s

                         ±0.1% @ ≥1s

Debounce time: 0~25ms (Software controlled)

Binary Output

Quantity: 4 pairs

Type: Fast speed transistor, programmable software control

AC break capacity: Vmax：250V（AC）/ Imax：0.5A

DC break capacity: Vmax：250V（DC）/ Imax：0.5A

Electrical isolation: All pairs isolated

Time Synchronization

Satellite synchronization: 1 × SMA，Use for GPS antenna interface

                                          Support GPS and Beidou Satellite

Fiber IRIG-B: 2 × ST，1 for transmission, 1 for receiving

Electric IRIG-B: 1 × 6Pin 5.08mm phoenix terminal

                          1 for transmission, 1 for receiving

External trigger synchronization: 1 × 4Pin 5.08mm phoenix terminal external trigger input + external trigger output

Sync error: <10us

Communication interface

Ethernet: 2 × RJ45 ，10/100M

WIFI: Inbuilt WIFI DHCP service

Serial port: 1 × RS232

USB: 2 × USB2

Weight & Size

Size: 390mm×256mm×140mm

Weight: 10kg

Display: 9.7inch LCD, touch screen

Keypad: Number key + direction key

Power supply

Nominal voltage: 220V/110V (AC)

Allowable voltage: 85 - 265 VAC ;127V～350V(DC)

Nominal Frequency: 50Hz

Allowable Frequency: 47-63Hz

Current: 10A max

Power Consumption: 1200VA max

Connection Type: Standard AC socket 60320

Working environment

Operating temperature: -10～+55 ℃

Relative humidity: 5～95%，Non-condensation

Storage temperature: -20℃ ~ +70℃

Atmospheric pressure: 80kPa～110 kPa（altitude 2000m or lower）
