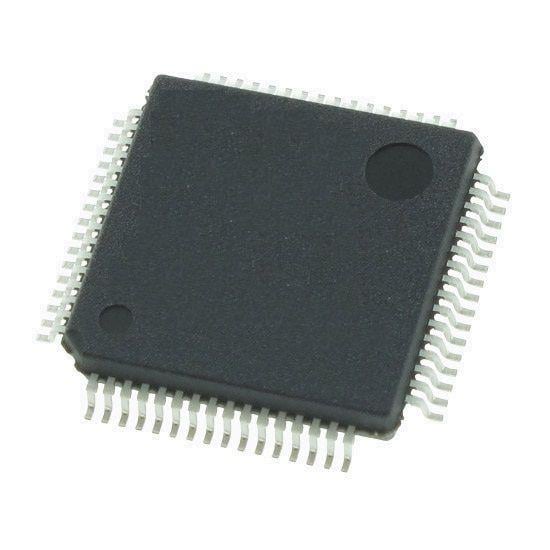

NXP FS32K142HRT0MLHT MCU+DSP+FPUs S32K142 32-bit MCU, ARM Cortex-M4F

Core: ARM Cortex M4F

I/O Voltage: 3.3 V, 5 V

Data RAM Size: 32 kB

Data RAM Type: SRAM

Data ROM Size: 4 kB

Data ROM Type: EEPROM

Qualification: AEC-Q100

ADC Resolution: 2 x 12 bit

DAC Resolution: 8 bit

Data Bus Width: 32 bit

Interface Type: I2C, I2S, LIN, PWM, SPI, UART

Mounting Style: SMD/SMT

Number of I/Os: 58 I/O

Watchdog Timers: Watchdog Timer

Moisture Sensitive: Yes

Program Memory Size: 256 kB

Program Memory Type: Flash

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.7 V

Analog Supply Voltage: 2.7 V to 3 V, 3 V to 5.5 V

Number of ADC Channels: 16 Channel

Maximum Clock Frequency: 80 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
