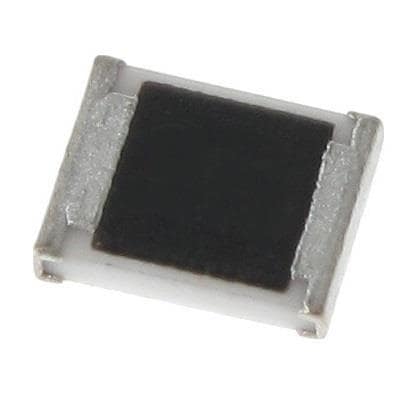

PANASONIC ERJ-U06F2940V Anti-Sulfur Resistor 0805 1% 294ohm Anti-Sulfur AEC-Q200
Manufacturer: PANASONIC Model: ERJ-U06F2940V - Contact
Width: 1.25 mm (0.049 in)
Height: 0.6 mm (0.024 in)
Length: 2 mm (0.079 in)
Features: Anti-Sulfur Resistors
Tolerance: 1 %
Resistance: 294 Ohms
Technology: Thick Film
Application: High Reliability
Unit Weight: 5.500 mg
Power Rating: 125 mW (1/8 W)
Qualification: AEC-Q200
Mounting Style: PCB Mount
Voltage Rating: 150 VDC
Termination Style: SMD/SMT
Temperature Coefficient: 100 PPM / C
Maximum Operating Temperature: + 155 C
Minimum Operating Temperature: - 55 C
