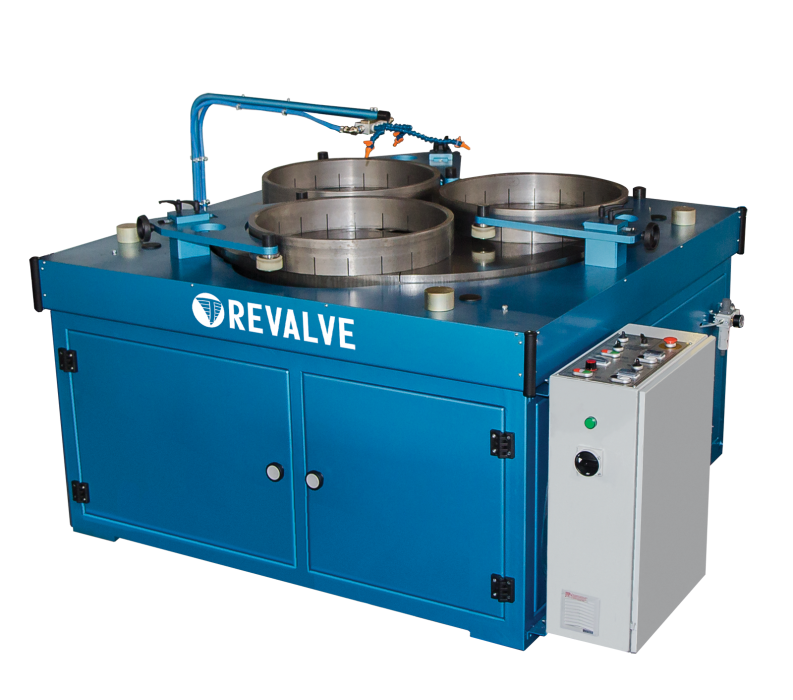

Revalve SP-1200 Flat lapping (polishing) machines
Manufacturer: Revalve Model: SP-1200 - Contact
Lapping-plate diameter
Ø 1250 mm (49″).
Approximately, DN 50…600 mm (2...24″) for the wedges of the gate valves,and DN 40…200 mm(2...8″) for the valves spools.
Specification:
Valve range: 50…600 (2...24) DN, mm
Lapping-plate diameter (″): 1250 (49)mm
Number of cartridges: 3/1
Internal diameter of the cartridges(″): 550 / 830 (21 / 32)mm
Machined-surface roughness: 0,08...0,1 μm
Machined-surface nonflatness (accuracy): 0,6 mkm
Lapping-plate speed: 5…40 rpm
Power consumption:8kW
Electric power supply: 400/50 (480/60*) V/Hz
Working pressure of network air, bar: 6,3 (91) (psi)
Overall dimensions (LхWхH)(″): 1990х1650х1350 (78x65x53)mm
Weight: 2100kg
* Upon customer request.
** Valve spools.
