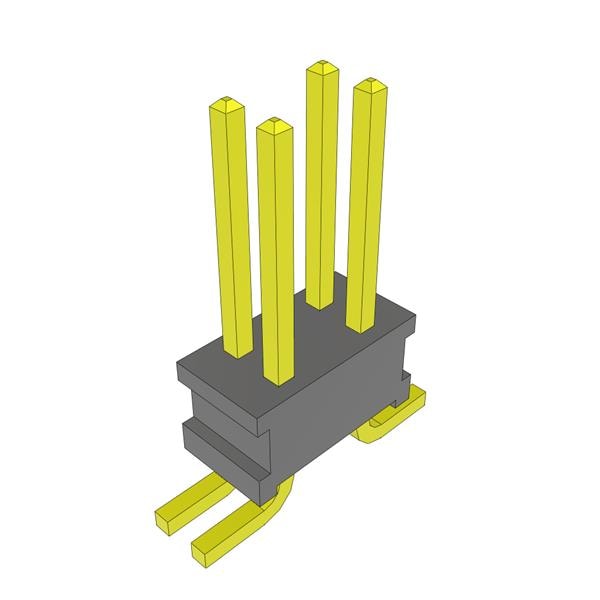

Samtec FTR-120-57-S-D-P Pin Header Surface Mount Micro Header
Manufacturer: Samtec Model: FTR-120-57-S-D-P - Contact
Pitch: 1.27 mm (0.05 in)
Application: Board-to-Board
Row Spacing: 2.54 mm (0.1 in)
Housing Color: Black
Contact Gender: Pin (Male)
Current Rating: 3.8 A
Mounting Angle: Straight
Mounting Style: SMD/SMT
Number of Rows: 2 Row
Voltage Rating: 290 VAC
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder
Mating Post Length: 10.92 mm (0.43 in)
Flammability Rating: UL 94 V-0
Number of Positions: 40 Position
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
