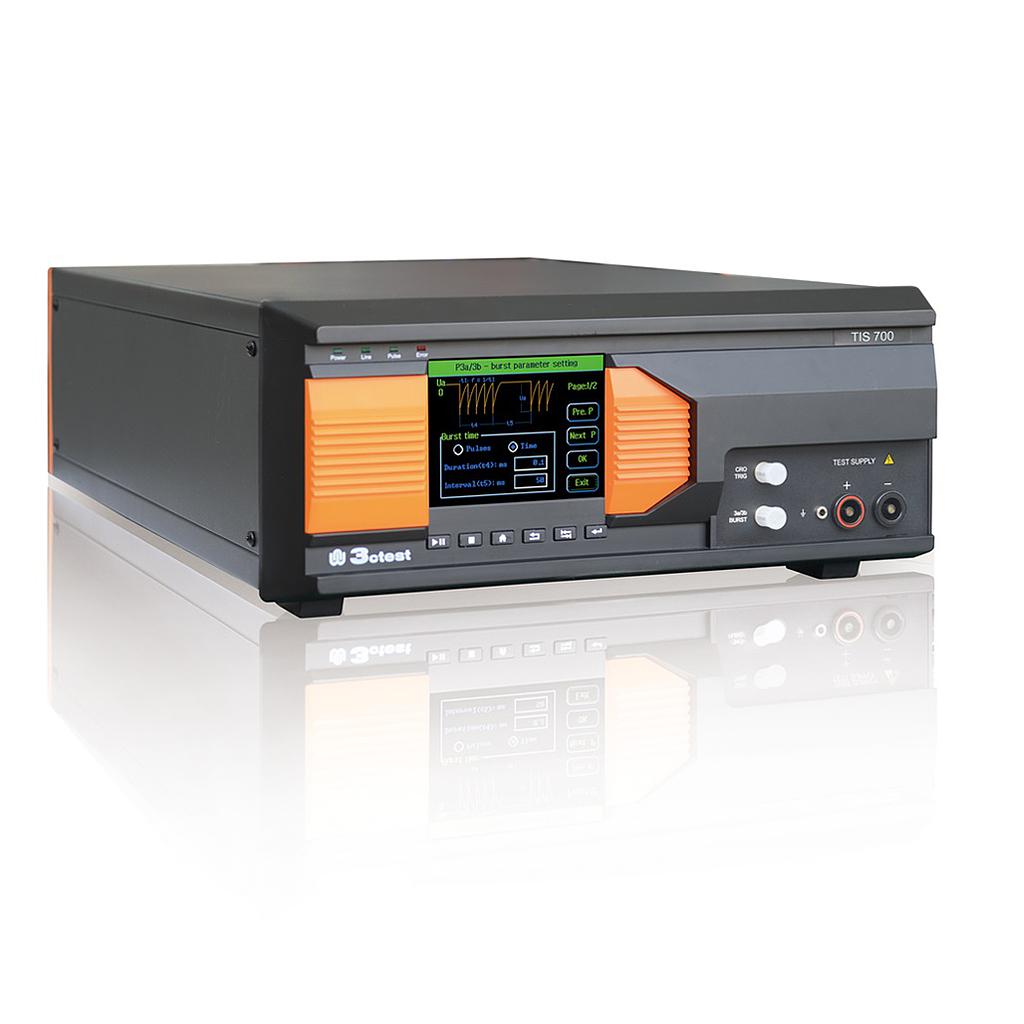

3ctest TIS 700-200 Compact Transient Immunity Simulator (CDN: Max. 60 V/200 A)

- Micro pulse module P1:

Test voltage: 3-600 V

Test voltage: Negative

Rise time Tr:

0.5 us – 1 us

1.5 us – 3 us

No load

Duration Td:

50 us 土20% no load

12 us 土20% 2 ohm matching load

1 ms 土20% no load

1 ms 土20% 50 ohm matching load

2 ms土20% no load

1.5 ms土20% 10 ohm matching load

0.2 ms 土20% no load

0.3 ms 土20% no load

0.5 ms土20% no load

Source impedance: 2 Ω, 4 Ω, 10 Ω, 20 Ω, 30 Ω, 50 Ω

Number of test : 1-9999

DUT voltage monitoring: 10:1

DUT current monitoring: 10 A:1 V

Pulse interval: 0.2 s-60 s (the shortest interval depends on output voltage)

Coupling mode: ICC, DCC (50 μs 土20% no load waveform)

- Micro pulse module P2a:

Test voltage: 3-200 V

Test voltage: Positive

Rise time Tr:

0.5 us – 1 us

1.5 us – 3 us

No load

Duration Td:

50 us 土20% no load

12 us 土20% 2 ohm matching load

1 ms 土20% no load

1 ms 土20% 50 ohm matching load

2 ms土20% no load

1.5 ms土20% 10 ohm matching load

0.2 ms 土20% no load

0.3 ms 土20% no load

0.5 ms土20% no load

Source impedance: 2 Ω, 4 Ω, 10 Ω, 20 Ω, 30 Ω, 50 Ω

Number of test: 1-9999

DUT voltage monitoring: 10:1

DUT current monitoring: 10 A:1 V

Pulse interval: 0.2 s-60 s (the shortest interval depends on output voltage)

Coupling mode: ICC, DCC

- EFT/Burst module P3a/3b:

Test voltage: 25-700 V

Polarity: P3b positive, P3a negative

Rise time Tr:

5 ns土30% into 50 ohm load

5 ns土30% into 1,000 ohm load

Duration Td:

150 ns - 45/+45 ns into 50 ohm load

150 ns - 45/+45 ns into 1,000 ohm load

Source impedance: 50 Ω

Pulse number: 1-200

Burst interval: 50 ms-999 ms

Pulse frequency: 0.1 kHz-200 kHz

Test duration: 1 s-50000 s

Coupling mode: CCC, DCC

Output: Direct output: By 50 Ω coaxial connector (for test connected to capacitance coupling clamp）

- General parameters

Mains supply: AC 110/220 V，土10%，45-65 Hz

Environment temperature: 15 ℃ - 35 ℃

Relative humidity: 35%-85%RH（no condensing）

Dimension:

Output current 30 A: 4U

Output current  60 A and 100 A: 6U

Output current 200 A: 8U

Weight : Approx. 20 kg

Trigger: Automatic, manual

Network: Internal CDN 60 V/30 A current up to 200 A

Input:

DUT supply: DC voltage from APS, APG or other DC source

Pulse 5,7: TIS 700 network superimposing Pulse 5 and Pulse 7

Output:

LDS200 input: Central DUT output port

Coaxial output port: To connect capacitance coupling clamp as per ISO7637-3
