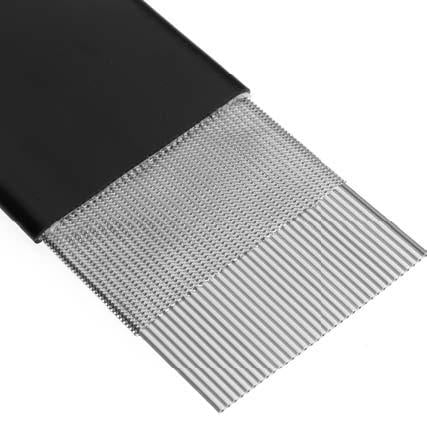

3M Electronic Solutions Division 3517/36-100SF Flat Cables 36/CAB/RC/FLJK/SHLD/ 28G/STR/.050/100'
Manufacturer: 3M Electronic Solutions Division Model: 3517/36-100SF - Contact
Color: Black
Pitch: 1.27 mm
Shielding: Shielded
Stranding: 7 x 36
Compliance: UL
Unit Weight: 8.890 kg
Cable Length: 30.48 m (100 ft)
Voltage Rating: 300 V
Wire Gauge - AWG: 28 AWG
Conductor Spacing: 1.27 mm (0.05 in)
Conductor Material: Copper, Tinned
Flammability Rating: N.E.C. 725, CL2, FTI
Insulation Material: Polyvinyl Chloride (PVC)
Number of Conductors: 36 Conductor
Maximum Operating Temperature: + 80 C
Minimum Operating Temperature: - 20 C
