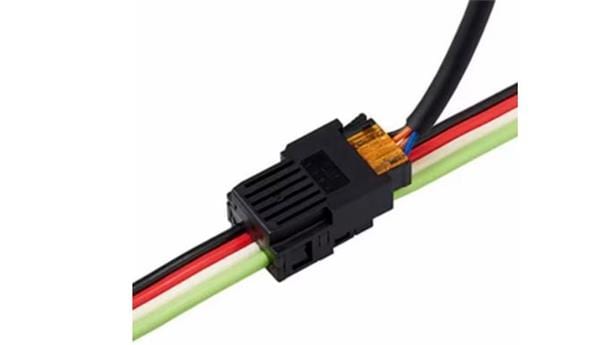

3M Electronic Solutions Division 38A04-0020-100 FL Socket Link Connector, Branch Mini-Clamp, 38A, 20awg Compatible Cable, Gray
Manufacturer: 3M Electronic Solutions Division Model: 38A04-0020-100 FL - Contact
Pitch: 2 mm (0.079 in)
Wire Gauge: 20 AWG
Application: LED, Sensor, Switch
Contact Gender: Socket (Female)
Current Rating: 3 A
Housing Gender: Socket
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 1 Row
Voltage Rating: 32 V
Contact Plating: Gold
Contact Material: Copper
Housing Material: Polybutylene Terephthalate (PBT)
Termination Style: IDC
Flammability Rating: UL 94 V-0
Number of Positions: 4 Position
Insulation Resistance: 1 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 20 C
