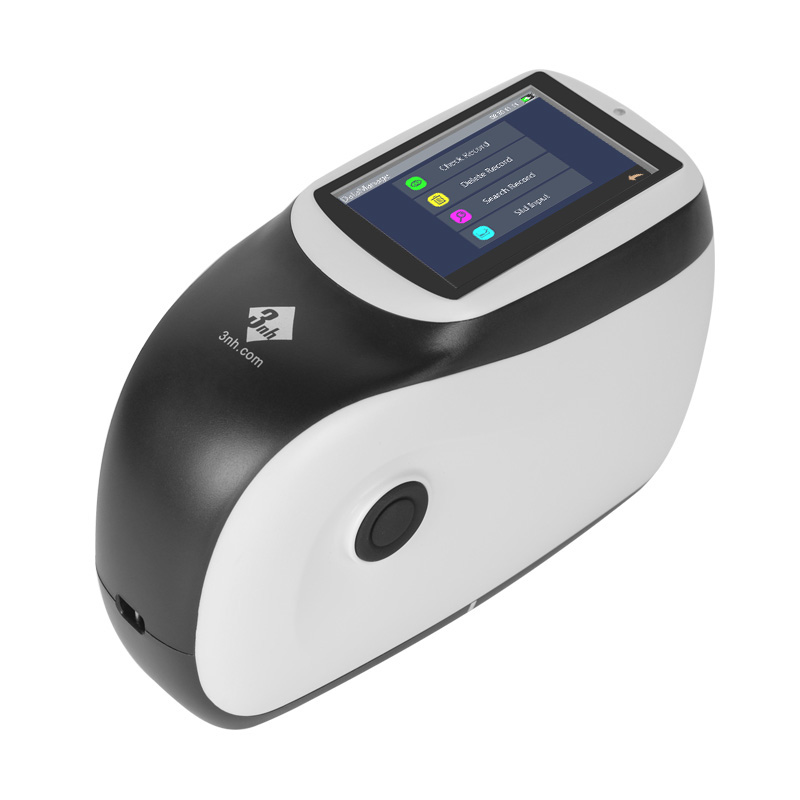

3nh MS3012 Multi-Angle Spectrophotometer (12 measurement angles)

Measurement Geometry: 12 measurement angles (7 illumination sources, 2 receivers)

Measure Angle: 45° Receiver: 45as-15°,45as15°,45as25°,45as45°,45as75°,45as110°

                          15°Receiver: 15as-45°,15as-15°,15as15°,15as-30°,15as45°,15as80°

Light Source: Full spectrum LED light source with blue enhancement

Lamp Life: 5 years, 3 million times measurements

Spectrophotometric Mode: Concave Grating

Sensor: 256 Image Element Double Array CMOS Image Sensor

Wavelength Range: 400nm-700nm

Wavelength Interval: 10nm

Measurement Range: 0~600%

Semiband Width: 10nm

Measuring Aperture: Φ12mm

Color Space: CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99

Observer Angle: 2°/10°

Illuminant: D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)

Measuring Time: Approx. 1 second for one angle; Approx. 12 seconds for all angles

Dimension: L*W*H=195*83*128mm

Weight: About 1Kg

Power: lithium-ion battery, 3.7V, 3200mAh, Continuous test 6000 times within 8 hours of full charge

Display: 3.5-inch TFT color LCD, Capacitive Touch Screen

Interface: USB, Bluetooth 5.0

Data Storage: 1000 pcs Standards,4000 pcs Samples

Language: Simplified Chinese, Traditional Chinese, English

Operating Environment: 10℃~50℃, humidity does not exceed 85%, no condensation

Storage Environment: -20℃~50℃, humidity does not exceed 85%, no condensation

Standard accessories: Power Adapter, USB Cable, User Guide, PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband

Optional Accessory: Micro-printer
