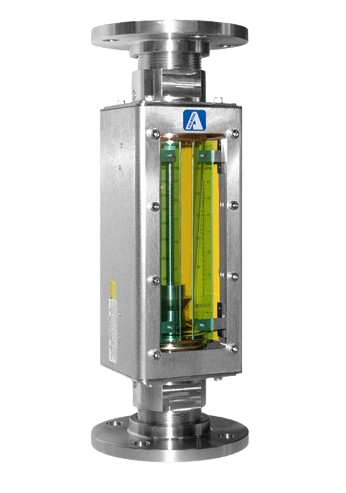

Aalborg MS-VU-M19-02-ST Model M Industrial Flow Meter (60 GPM, 2½")
Manufacturer: Aalborg Model: MS-VU-M19-02-ST - Contact
Accuracy: ±3% of full scale
Minimum flow rate: Approximately 10% of maximum flow rate
Repeatability: ±0.5% of full scale
Maximum pressure at 200 °F (93 °C): 200 PSIG /13.6 bar gauge (tube size 3, 4, 5 and 6). 125 PSIG / 8.5 bar gauge (tube SIZE 8 and 9)
Maximum operating temperature: 200 °F (93 °C)
M style meter: Flanged
Max flow rate: Water(GPM-L/min): 60-230; Air(SCFM-L/min): 250-7000
Tub size: 9
Pressure drop (of H20): 23
Flanged connection: 2½"
