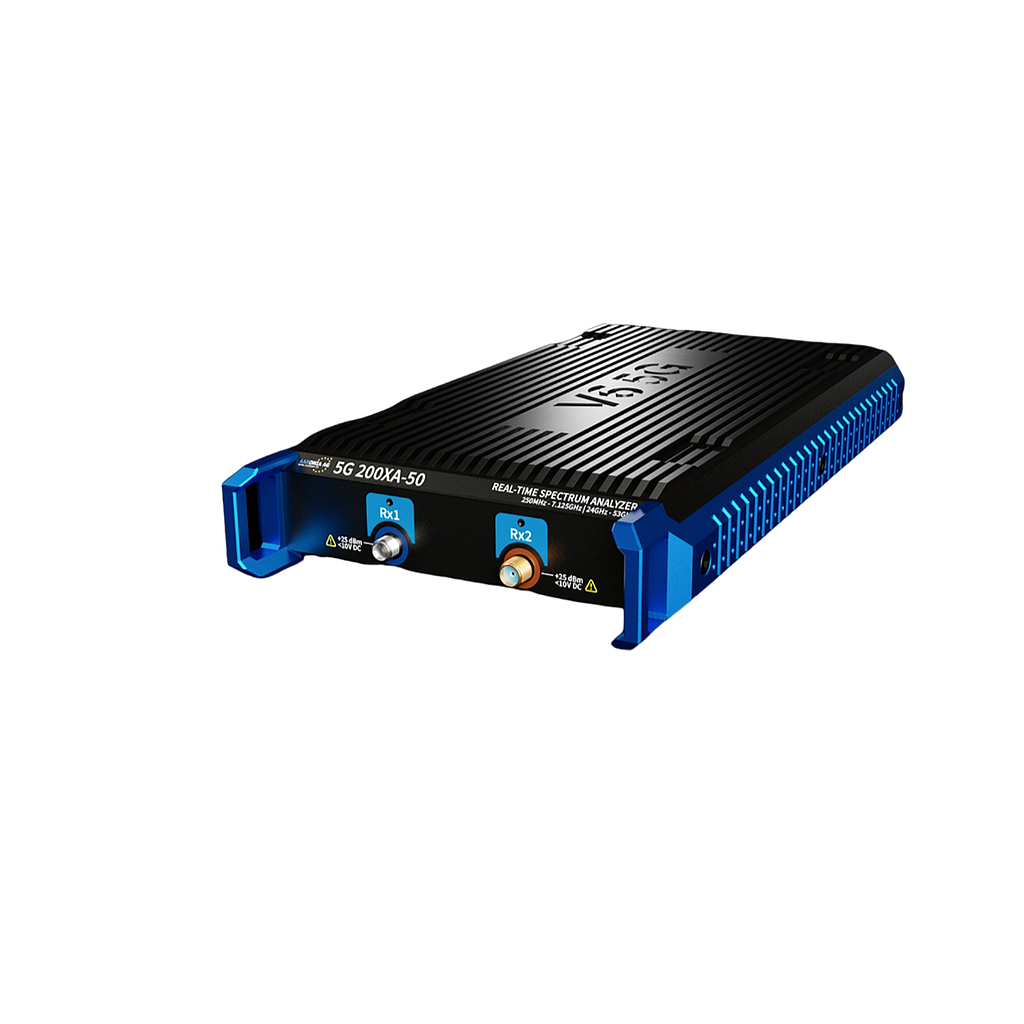

AARONIA SPECTRAN V6 5G 200XA-50 Real-Time Spectrum Analyzer (250 MHz - 7.125 GHz, 24 - 53 GHz; 2 Rx)

Bandwidth: 250 MHz - 7.125 GHz, 24 - 53 GHz

RTBW: 60 MHz

Speed: 500 GHz/s (optional 3THz/s)

I/Os: 2 Rx

Real-time bandwidth Rx: 60 MHz via 1x USB

Max. power Rx: +23 dBm

Max. power Tx: +20 dBm

DANL (internal pre-amp on): Typ. -170 dBm/Hz

Amplitude accuracy (typ.): Typ. +/- 0.5 dB (compensated by FIR filter)

USB streaming connection: 1x USB 3.1 or 3.2 PD

RBW (resolution bandwidth): 62 mHz to 200 MHz

Measurement units: Over 20 (e.g. dBm, dBμV, V/m, A/m, W/m², dBμV/m, W/cm²)

Detector Min, Max, AVG, Peak, QPeak

Attenuator range: 50 dB / 70 dB (0.5 dB steps)

Traces: Over 20 (e.g. ACT, AVG, MAX, MIN, QPEAK)

Measurement modes: True IQ or Power/Frequency data

ADC: 2GSPS 16 Bit

Temperature range (operation): 0 °C to +50 °C (extended -40 to +75 °C)

Dimensions: 210 x 115 x 30 mm

Power: USB 3.2 Gen 1 Type-C PD 3.0

Power consumption: Typical 10 W
