Equipment efficiency: 10PPM
Equipment Marrying Rate: ≥ 98%
Size of sub-container: 8-channel 5V3A
BMS Tester Specifications: 4 string protection board tester
inner group tester: HK3561
welding power source: 220V 5000A transistor welding power supply
Battery pack comprehensive tester: 50V60A
aging cabinet: 30V10A20A
Control System: PC industrial computer (embedded system)
Input power consumption: 2KW
Input power: AC220V/50HZ
compressed air source: ≥ 0.6Mpa
Display: 21.5 inch Philips large display
Equipment Appearance Reference Dimensions: L*W*H=1200*800*1500mm
Weight of whole machine: 250KG
Product Features
Equipped with industrial control integration, all parameters of the battery can be traced and tracked, facilitating data management and simple operation.
Suitable for various types of batteries, easy to replace and operate.
Built in high-precision and universal HK3561 internal resistance tester, with high testing accuracy and fast speed.
A one-stop work platform that includes all necessary production process equipment from battery cells to finished battery packs, making it convenient for small-scale trial production, sampling, teaching, and other scenarios.

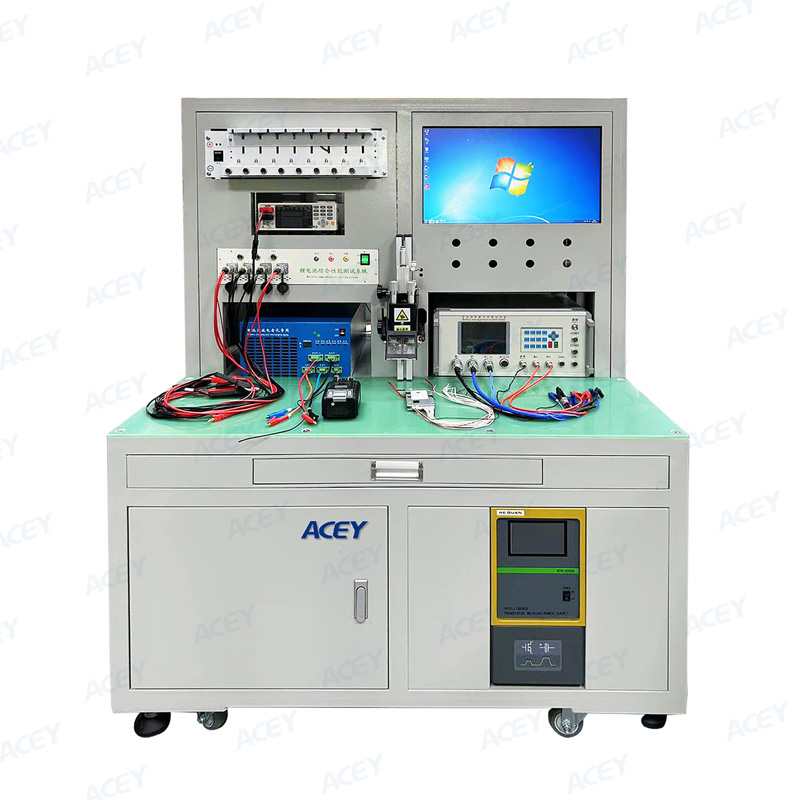

Product Structure

Workflow
1. Capacity grading (5V3A 8-channel capacity grading cabinet)
2. BMS tester (test BMS materials as required)
3. Internal resistance tester (test the internal resistance and voltage of the battery, and group and pair)
4. Welding power supply (use resistance welding machine to weld the battery in series and parallel)
5. Welding BMS (use electric soldering iron to correctly connect BMS to the battery pack)
6. Battery pack comprehensive performance test (test various performance of the battery pack)
7. Aging (30V10A20A charge and discharge aging test)
