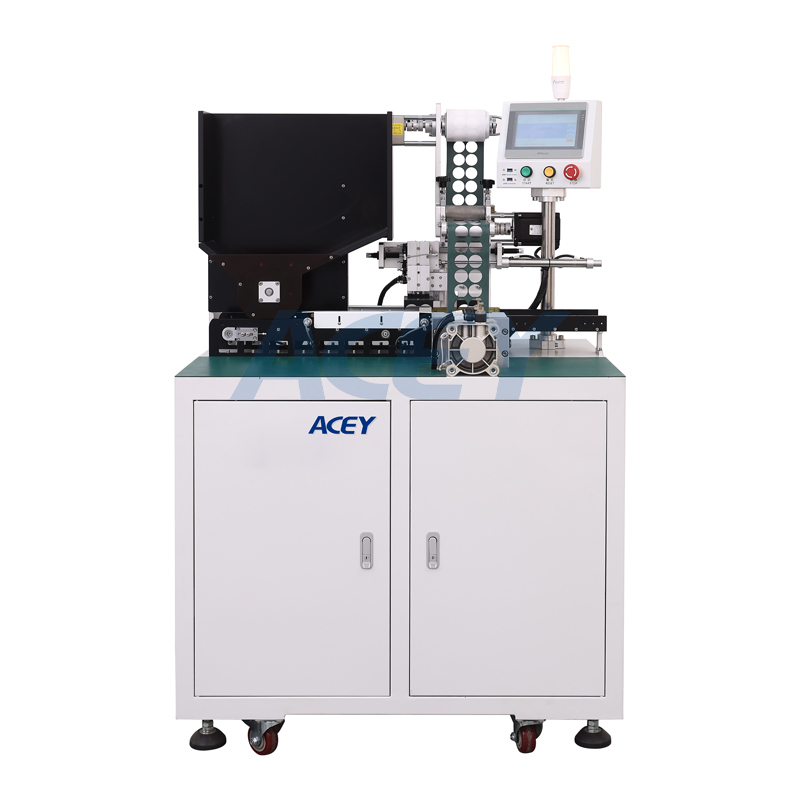

Voltage Supply: Single-phase ~220V, 50Hz
Rated Power: 2KW
Surface Pad Material: Highland barley paper or PVC material
Material Specification Requirements: Maximum diameter of barley paper roll is 350mm; inner diameter of paper roll core is 72–75mm
Battery Type: Battery cell positive or negative pole automatically pasted with highland barley paper pad or PVC material
Feeding Method: Insert battery cell hopper, 400 pcs each time, available for 2 separate inserting units BNX-350 auto pasting
Pneumatic Pressure: 0.4–0.8MPa
Cushioning Power: Electric or pneumatic
Control Device: 7.5-inch touch screen, PLC programmer and servo motor
Barley Paper Roll Width: 100mm
Speed: 2000 pcs/hour, 2 pcs per punch
Dimensions: L1110mm × W710mm × H1580mm
Machine Weight: 200Kg
Knife Mold: Slow-moving wire processing method, high precision; knife mold coated once every 5000 cycles to remove adhesive residue
Product Features
The equipment has a compact structure design, beautiful appearance and small space occupation.
The equipment is equipped with universal movable casters, which makes it easy to move and transport the equipment.
Replacing mold to stick other size battery is supportable(Only 33140 &32140).
