Compatible Battery Types: Cylindrical cells (e.g., 18650, 21700, 32650, etc.)
Maximum Inspection Dimensions: L500mm × W340mm × H200mm
Control System: Advanced PLC (Programmable Logic Controller) for precise operation
Production Line Compatibility: Fully modular design, can be seamlessly integrated with existing automated production lines
High Efficiency & Cost-Effective: Designed for high-throughput testing with minimal maintenance cost
Smart Reflow Mechanism: Supports NG return logic, allowing defective battery packs to be corrected and re-tested to ensure 100% yield
Adjustable Parameters: All operating settings and detection criteria can be customized through the PLC interface
Ambient Temperature: 5°C – 35°C
Humidity Range: 20% – 90% RH (non-condensing)
Air Source Pressure: 0.5 – 0.6MPa
Power Supply: AC220V (50Hz / 60Hz)
Total Power Consumption: ≤1.5kW
Floor Loading Capacity: ≤200kg/m²
Grounding Type: Direct grounding
Site Requirements: Clean environment, free from pollution and strong electromagnetic interference
Installation Surface: Level floor without vibration or mechanical shock
Noise Level: ≤80dB
Dimensions (L×W×H): Approx. 1946mm × 900mm × 1750mm (subject to final design)
Net Weight: Approx. 380kg
Equipment Color: Computer white (customizable upon request)

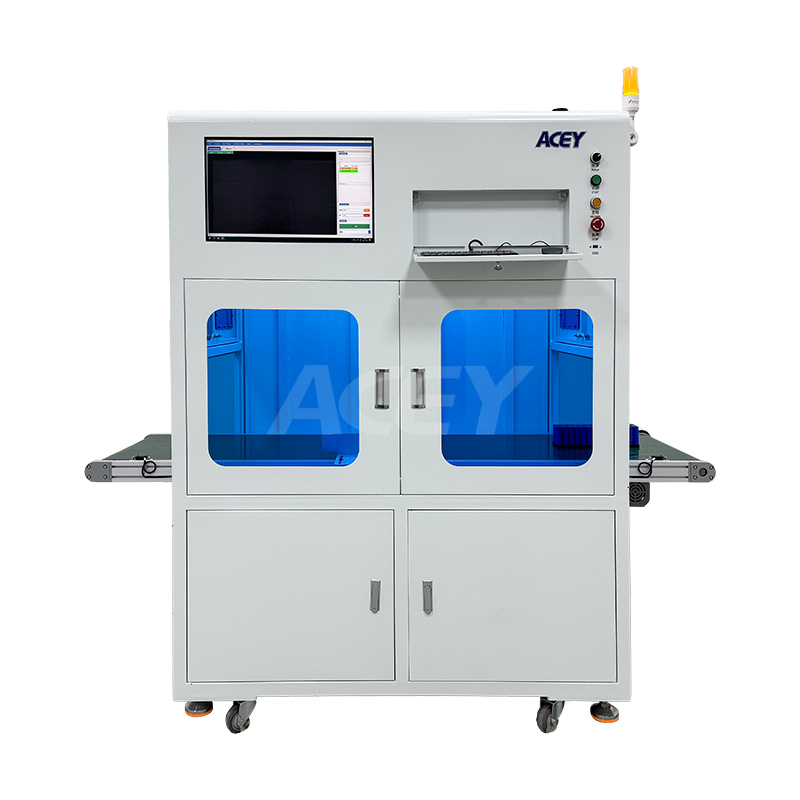

ACEY-CCD01C visual inspection machine is a high-end industrial visual inspection station engineered for the modern smart factory. By leveraging high-definition industrial cameras and advanced template-matching algorithms, it eliminates the risks of human fatigue and error in battery assembly. This system ensures every battery cell is correctly oriented before moving down the line, safeguarding your production quality and streamlining the assembly process through seamless PLC integration.
