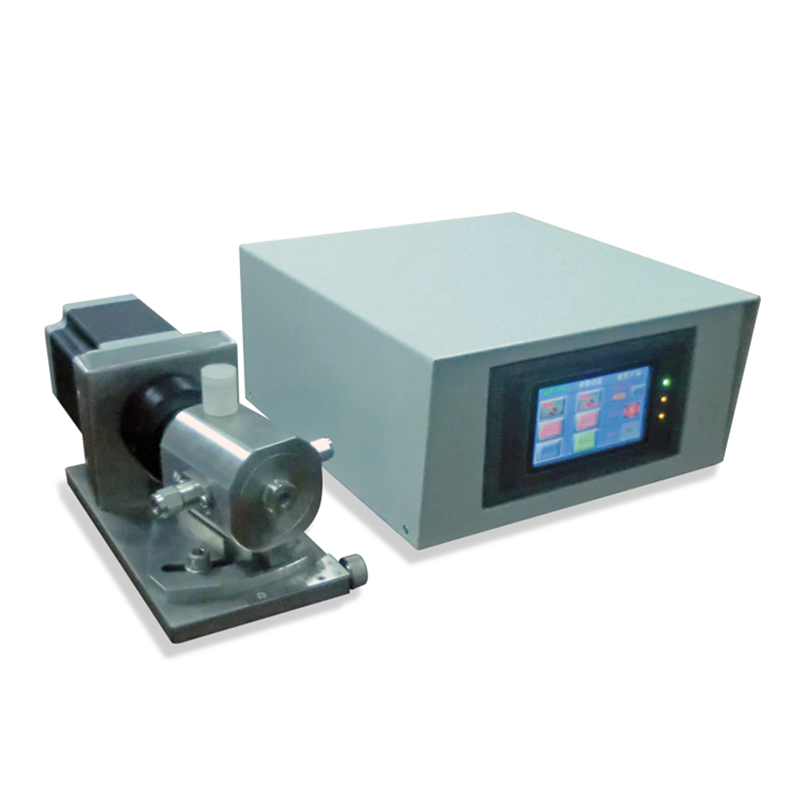

Product Type: Single head 1 outlet 1 reciprocating rotary positive displacement industrial ceramic plunger metering pump
Pump Core Material: ZrO₂, Al₂O₃
Pump Core Performance: Corrosion resistance, high temperature resistance, wear resistance, high hardness, low friction coefficient, long service life
Pump Core Matching Accuracy: 2 μm
Drive Method: Imported servo motor / stepper motor
Rotation Range: 1–1200 rpm forward and reverse rotation
Quick Control Method: Pulse signal control
Control Display Method: 4.3-inch touch screen HMI interactive operation
Programming Software: Imported Panasonic programmable controller
Storage Performance: Memory can store parameters and up to 100 recipes
Single Stroke Capacity Range: 0 μL–10000 μL max 10000 μL per stroke
Capacity Calculation: Q total = Q stroke × N stroke
Measurement Accuracy: Within ±0.5%
Applicable Medium Temperature: ≤250°C (depending on material, confirm when ordering)
Catheter: PE/PTFE (Teflon), inlet ID Φ6 OD Φ8, outlet ID Φ6 OD Φ8
Discharge Needle: Φ2.5 / Φ4.0 / Φ6.0 optional length
Metering Pump Size: 201 × 125 × 147 mm
Controller Size: 295 × 215 × 157 mm
Weight: ≈7.3 kg including pump and controller
Power Supply: AC 220V ±10% 50/60Hz standard / AC 110V ±10% optional
Working Environment: Temperature 0–40°C, humidity <80% RH
Protection Level: IP31
Safety Features: Password protection and factory reset function
1. Suitable for high-end micro-precision liquid medium metering filling, adding, liquid injection, spraying and marking.Adopting valveless design, the flow is extremely stable, and the flow accuracy is within ±3‰.
2. The pump core material is made of special industrial ceramics (Zirconium Oxide ZrO₂, Alumina Al₂O₃), which has high-strength wear resistance, acid and alkali corrosion resistance, high temperature resistance, and long service life.
3. With anti-chemical reaction, the contact medium part is ceramic.
4. The pump core and pump sleeve are processed by a combination of nanotechnology and gel injection molding technology, with uniform microstructure and extremely high density. The matching accuracy is extremely high, achieving self-sealing, self-lubricating ceramic technology, without additional seals and lubricants.
5. Pump cover and component mechanism are uniformly resistant to acid and alkali, etc., which can adapt to the measurement of liquid in various harsh environments.
6. The design structure is a positive displacement plunger structure, reciprocating rotation, adjusting the stroke length/rotation period to change the flow rate.
7. No waste, no air bubbles, no leakage, no dripping, no clogging.
8. The system has powerful functions, multi-capacity, multi-speed options, and can transform and reversely transfer liquid immediately.
9. No dynamic seals and wearing parts, moving parts plunger rod, easy maintenance.
10. Imported programmable controller and touch screen man-machine dialogue, convenient parameter setting, stable and reliable performance.
11. Measuring and filling can be carried out according to the set parameters, and the metering will be automatically stopped when the prescribed amount of liquid is reached.
12. Standard communication interface, which can be used independently or communicate with PLC or industrial computer conveniently.
13. The operator can calculate the total amount of liquid according to the actual production as: Q total (total liquid amount) = Q stroke (stroke amount) * N stroke (stroke number)
14. With positive pumping/retracting/retracting amount/delayed measurement/standby cleaning/capacity counting and other settable function modes.
15. The whole machine is small in appearance, beautiful in appearance, flexible in use, simple in operation, stable in operation, safe and reliable.
