Film coating speed: 0～100mm/sec
Coating width: 0～150mm (customizable)
Travel: 300mm
Coating thickness accuracy: ±3um

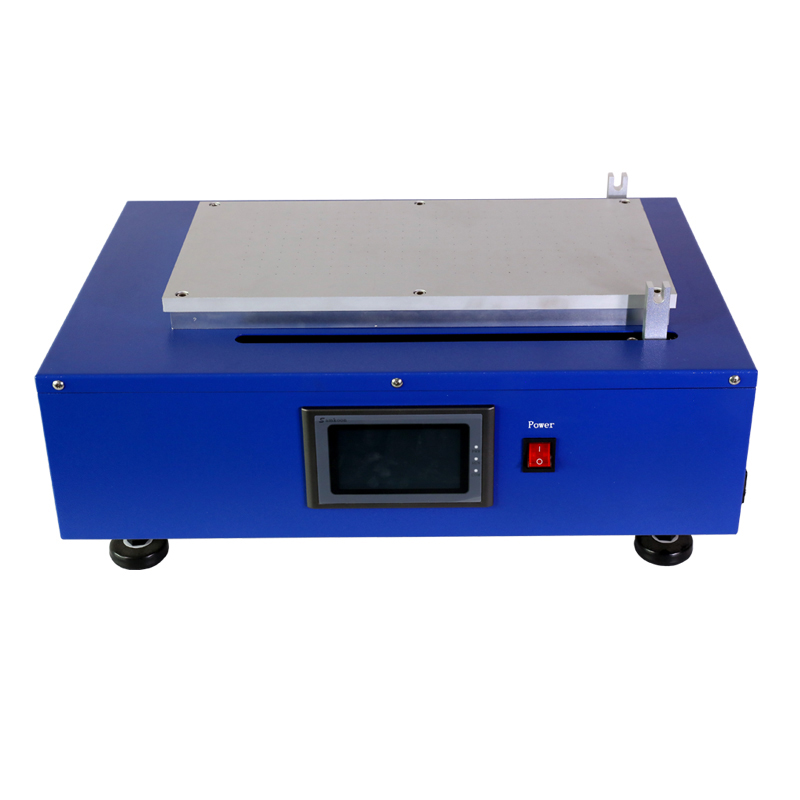

Vacuum plate: Aluminum plate with vacuum (convenient for substrate adsorption)
Built-in vacuum pump
Vacuum plate size: L410mm × W200mm × H30mm
Scraper adjustable range: 0～3.5mm
Power supply: 220V/50Hz
Weight: 48KG
Dimensions: L549mm × W305mm × H335mm
1. Vacuum aluminum tray, which can quickly place or remove the substrate;
2. It can be adjusted in the range of 0～300mm.
3. With micron-level adjustable film applicator (scale 10um), scraper with a width of 100mm.
4. Small size, can save space.
5. Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful.
