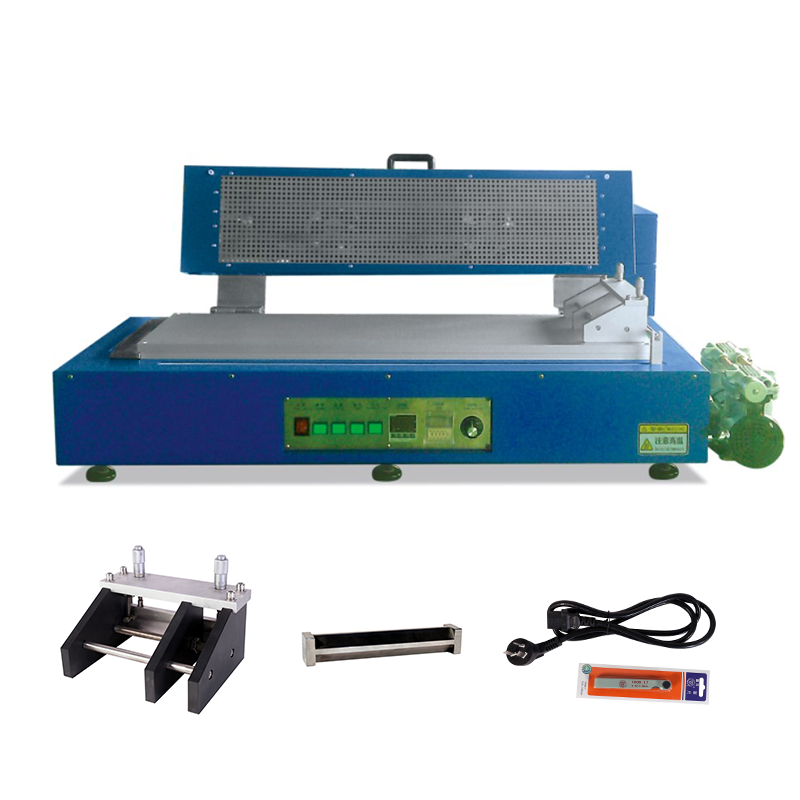

Film coating speed: 0～120mm/sec (lithium iron phosphate paste)
The stroke can be adjusted by the stroke switch between 0～250mm
Vacuum plate: Aluminum plate with vacuum
Vacuum plate size: L365mm × W200mm × H32mm
Scraper adjustable range: 0～3.5mm
Heating drying system: Room temperature～130℃, digital display temperature controller, accuracy ±1℃
Includes 1 oil-free vacuum pump
Power supply: 220V/50Hz
Weight: 49KG
Dimensions: L505mm × W355mm × H325mm
1. Drying heating, digital display temperature control, working temperature 130℃.
2. Digital display timer, drying time can be set freely.
3. The coating speed is adjustable within the range of 0～120mm/sec (lithium iron phosphate slurry).
4. Vacuum aluminum plate, can quickly place or remove the substrate.
5. The stroke can be adjusted by the stroke switch between 0～250mm.
6. With a scraper for adjusting the thickness of the coating film (precision 0.01mm).
