Volume: 30L
Temperature control range: RT+10~500℃
Control accuracy: ± 0.5 ℃
Temperature resolution: 0.1 ℃
Shelves: 1PC
VACUUM: 100Pa
Vacuum pump: External option
Power supply: AC220V/50Hz
Rated power: 2.4KW
Interior Size mm: 450X450X450
Overall Size mm: 595X600X1245
There may be errors in the overall dimensions, which are subject to the actual objects.
Options (optional):
SS-Stainless Steel Plate (304, 316L)
PR-Temperature Recorder, Pressure Recorder
PLC-temperature, vacuum, inflation, vacuum automatic linkage PLC control system
LZ-condenser
BS-Biological Special (Temperature Control Range 50-65)
HC-load-bearing partition (load-bearing 50kg, standard load-bearing 15kg)
Temperature selection: 400 ℃, 500 ℃
Vacuum pumps: DM4, DM8, DM15 and 2XZ series vacuum pumps are selected according to requirements
Application

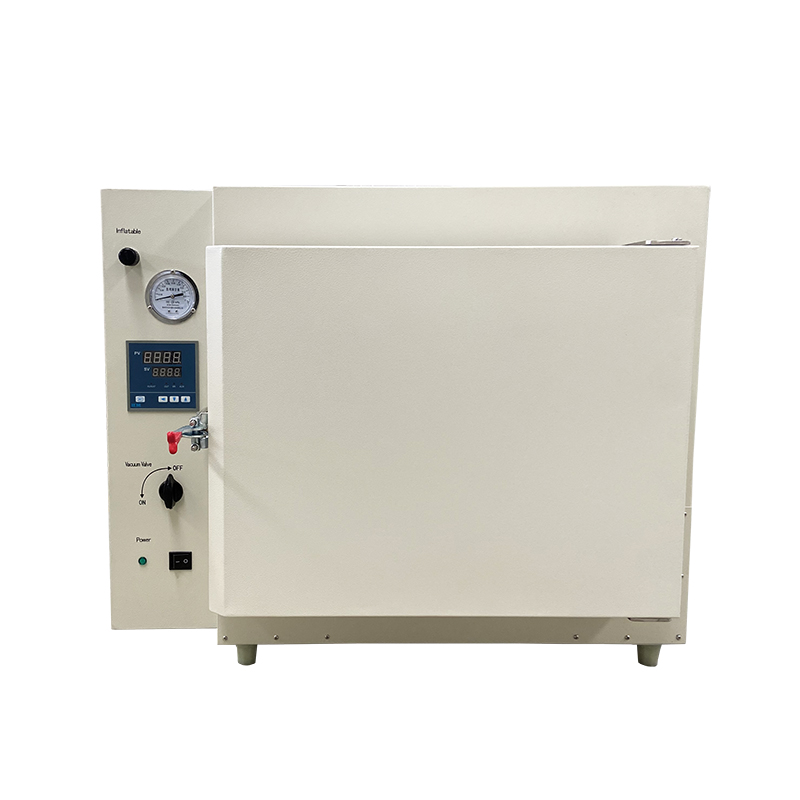

Vacuum Drying Oven is widely used in research applications such as biochemistry, chemical pharmacy, medical and health, agricultural scientific research, environmental protection, etc., and are suitable for powder drying, baking, and disinfection and sterilization of various glass containers. It is suitable for fast and efficient drying treatment of dry heat sensitive, easily decomposed, easily oxidized substances and complex components.
Features
1. Streamlined design, electrostatic plastic spraying on the surface of cold-rolled steel plate on the shell, stainless steel inner container, and easy cleaning without dead angle design.
2. Radiant heating mode to make the temperature division uniform and stable, so that dry articles are heated evenly.
3. Using microcomputer PID control, the system has automatic temperature control, timing, over-temperature alarm, liquid crystal display, accurate temperature control, stable and reliable.
4. The box door is equipped with a large viewing angle observation window as standard, and heat insulation technology is adopted to make the temperature of the observation window within a reasonable range.
5. The use of insulation technology and insulation materials, so that the temperature in the box is not easy to lose, so that it reduces energy consumption and energy saving.
6. The equipment is equipped with cooling and cooling pipes. The inlet and outlet are located on the back of the box body, which can be filled with water or air-cooled to achieve rapid cooling. The box door adopts a water jacket protection device, which is safe to use and can protect the door seal ring from rapid aging.
7. A set of condenser is installed at the front end of the vacuum pump. The water or solvent volatilized by a large amount of materials in the box can be condensed and stored in a liquid state in the tank. Only a small amount of water or solvent is sucked into the vacuum pump to prevent the vacuum pump from rapidly halogenating and protecting the vacuum pump. The condenser is mainly used to collect water and solvent and protect the vacuum pump. (optional).
Advantages
1.It has follow advantages compare with the routine dry technology:
2.Vacuum environment greatly reduced the liquid boiling point which needs to drive out, therefore the vacuum dry method is applicable for heat sensitivity material;
3.For the sample that can't be dried easily, such as powder or other pellet form sample, using vacuum dry method may efficiently shorten dry time;
4.Various complex structures of machinery ministry or other porous sample process are used of vacuum dry method after washing, and Completely dry without leaving any residue;
5.Use more safe: under vacuum or inertia condition, completely eliminate the possibility that the oxide heated and explode;
6.Compare with the normal drying depended on air cycle, Powder samples will not be blown or moved by air
