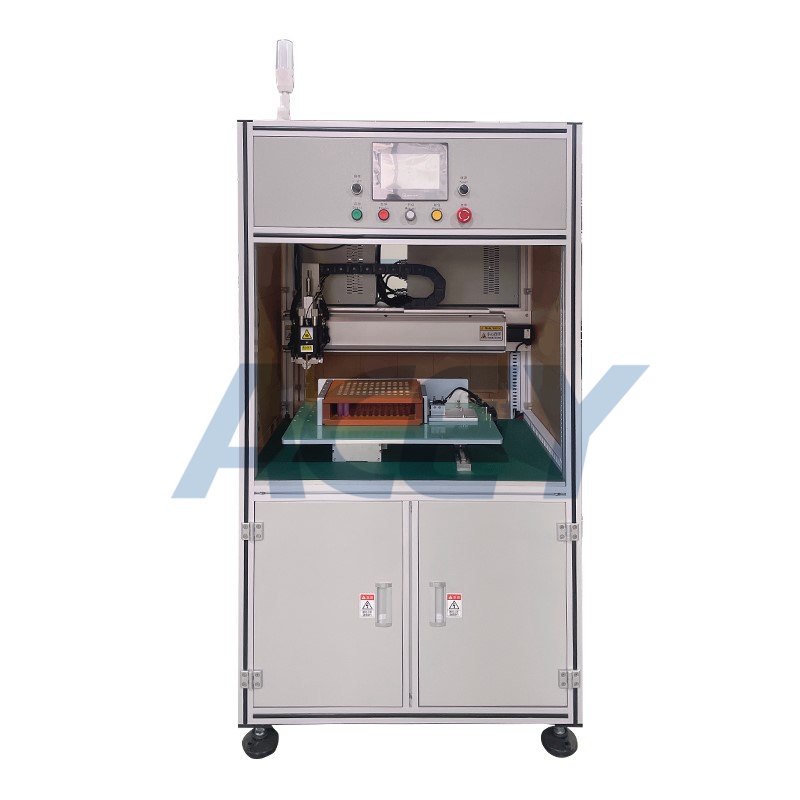

Y-axis Travel: 500mm (customizable)
X-axis Travel: 400mm (customizable)
Maximum Spot Welding Speed: 0.35s/point (about 2800 units of 18650 cells per hour)
Motor Drive Speed: 600mm/s
Maximum Battery Cell Loading Capacity: X direction: 26; Y direction: 26
Capable File Group Storage: 100 groups
Operating System: Embedded system human-machine interface
Transmission Mode: Taiwan precision screw with guide rail
Driving Mode: Stepper servo motor
Repeat Positioning Accuracy: ±0.02mm
Dimensions: L900mm × W900mm × H1650mm
Power: 2000W
Machine Weight: 150KG
Maximum Bearing Weight of Y-axis: 30KG
Input Power Supply: Single-phase AC220V/50Hz
Air Source: 0.4–0.6MPa
Features
1. Support breakpoint start, automatic start, and manual start.
2. Cold solder joint and sealing off alarm.
3. Easy program, support matrix, array and point program, can store 100 group parameters.
4. Welding needle abrasion alarm.
5. Build-in welding current monitor, can display real time welding current.
6. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding.
7. Can be matched with the production line of lithium battery group.
8. Can store dozens process of different battery packs product, switching products without re-setting parameters.
9. Can match a variety brand of spot welders.
