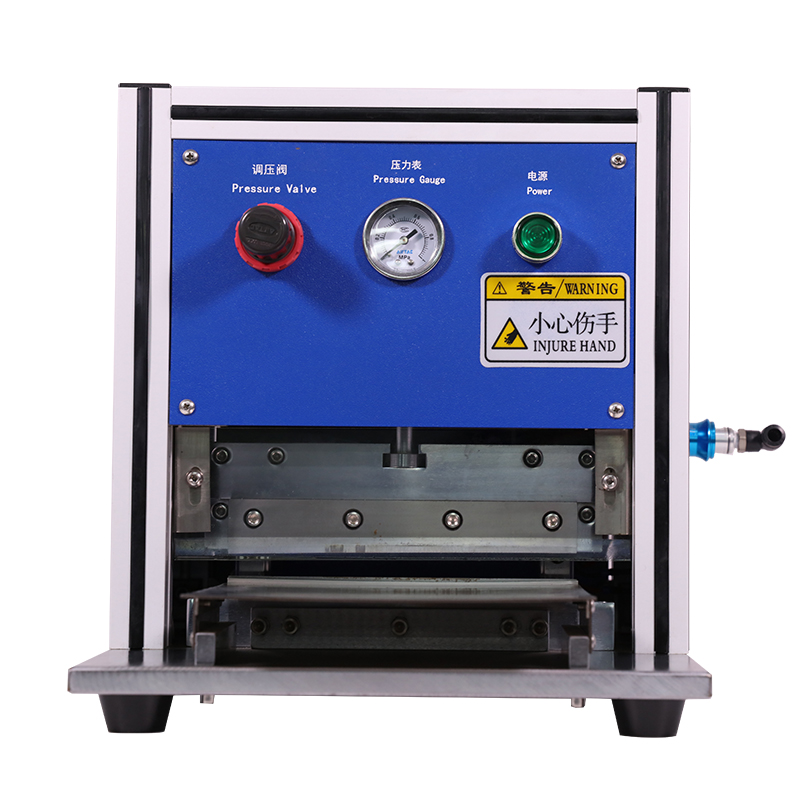

Using infrared positioning device, accurate and convenient electrode positioning die cutting
Vertical burr ≤15μm, horizontal burr ≤20μm
Long tool life, normal use ≥30,000 times
Punching size: 280×180mm (can be customized according to customer requirements)
Punching accuracy: ±0.1mm
Booster cylinder: 3T
Die cutting stroke: 150mm
Pneumatic-liquid pressurized cylinder driven, punching force and punching speed are adjustable
Capacity: 800～2000EA/H (sheet die cutting efficiency is slightly lower)
With safety protection light curtain
Power supply: 220V/50Hz
Power: 100W
Compressed air: 0.5MPa～0.8MPa
Dimensions: L590 × W415 × H900mm
Equipment weight: 190KG
1. Using infrared positioning device, accurate and convenient pole piece positioning die-cutting.
2. It is convenient and quick to change the knife mold.
3. Long tool life, normal use ≥ 30,000 times.
4. There are no quality defects such as burrs, powder falling, and indentation.
5. Between manual and fully automatic, high efficiency 800～2000 pieces/hour
(According to the size of the die-cut pole piece, 1-8 pieces can be punched each time, the standard is 2 pieces).
6. Using four guide pillar structure, sliding up and down smoothly and 7. The equipment inlet has a safety. protection light curtain, which makes the operation very safe.
7. Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful.
8. Easy to operate, safe and reliable, small size.
