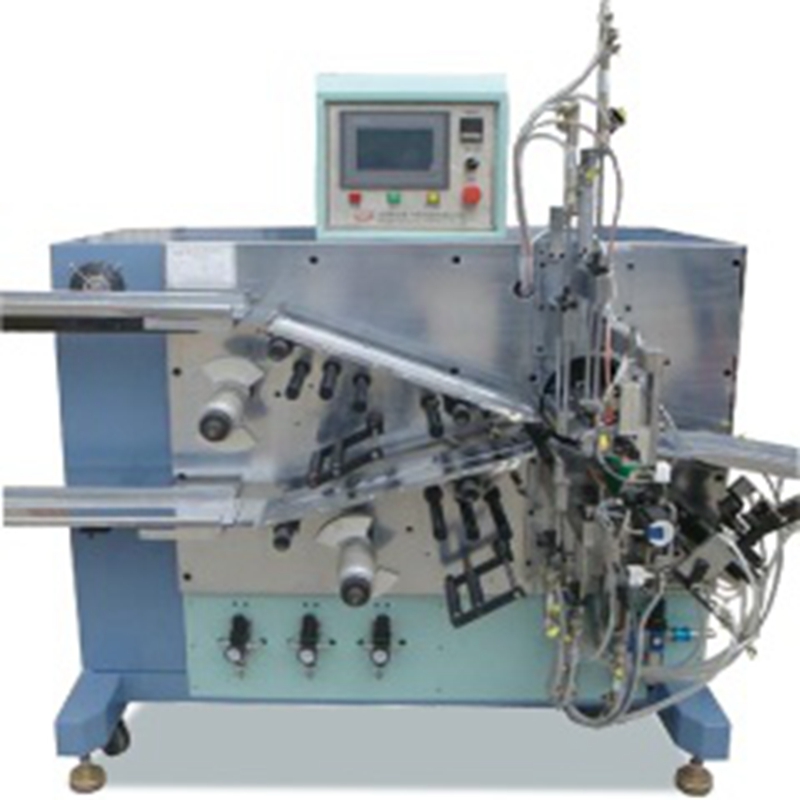

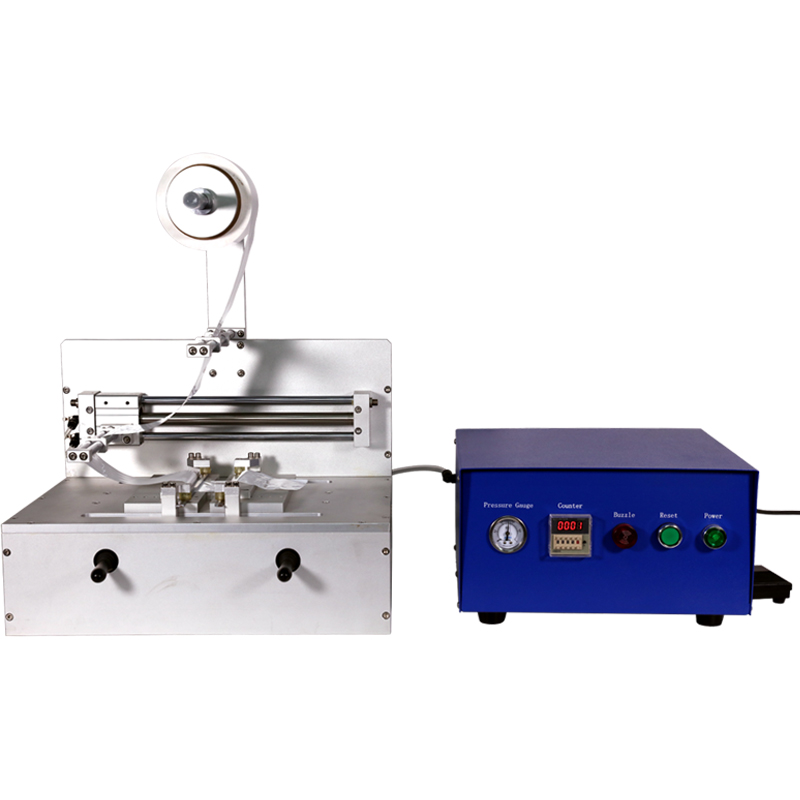

Winding size: Width 40–100 mm, length 30–100 mm, thickness 10 mm
Winding accuracy: Neatness is better than 0.5 mm
Needle winding form: Double-insertion trapezoidal winding needle, standard width 60 mm
Guide length: 1000 mm, pole piece can be slightly longer
Film cutting method: Automatic cutting
Tension control: Adjustable within 150 g
Width adjustment: Manually adjust winding needle, adjustment range within 10 mm, excess part needs replacement
Winding speed: Adjustable via touch screen
Positive and negative tabs: Position can be set by motor unwinding
Adhesive tape placement: Automatic tape dispenser provided, manual tape supported
Air source: 0.5–0.8 MPa compressed air
Power supply: Single-phase AC 220V ±10% (110VAC optional), 50Hz/60Hz, power 1 kW
Equipment size: L1300 × W700 × H920 mm
Weight: About 360 kg
1. For plug-in trapezoidal winding needles, one side is automatically retracted, one side can be pulled out, and the winding speed can be set.
2. The size compatibility design of the winding cell, the length of 30-100mm can be realized by adjusting the clamp, the winding needle can be adjusted within 10mm of the width change, and the winding needle must be replaced if it exceeds.
3. PLC control, touch screen operation, all parameters can be set, design full automatic cycle stepping function, can step back step by step.
4. Optional automatic tape machine to assist tape tape.
5. Single vertical plate structure, can be applied to the winding process of square lithium ion battery.
6. Isolation film roll feeding, passive tension control, adjustable tension.
7. Slice-type pole piece feeding, guide plate guides, manual feeding needle, vacuum assisted suction during winding.
